Echipament de transmisie wireless de la Hikvision, special conceput pentru sistemele de supraveghere, transporturi, industrie, transmisii date si alte proiecte ce necesita transmisii wireless pe distante mari de pana la 5 Km in spatiu deschis. Functioneaza in Mod Acces Point punct-la-punct si punct-la-multipunct. Antena interna ce ofera un castig de 9dbi si un unghi de comunicare de pana la 35°±5°, viteza maxima de 867Mbps. Acces pointul este prevazut cu 2 interfete Gigabit RJ45, alimentare 12V dC PoE pasiv. Conectare rapida prin DIP switch.
Acest echipament reduce costurile de cablare si a timpului de instalare, configurare si montaj facil.
Specificatii
| Producator | HIKVISION |
| Castig | 9 dBi |
| Temperatura de functionare | -30°C la +70°C |
| Dimensiuni | 92 × 187 × 58mm |
| Greutate | 0.307 Kg |
| Beamwidth | 35°±5°, [3dB] |
| Viteza transfer | max. 867 Mbps |
| Interfata retea | 2 x porturi Gigabit RJ45 |
| Mod functionare | Punct la punct sau punct la multipunct (recomandat mai putin de 4 puncte) |
| Frecventa | 5180~5240MHz / 5260~5320MHz / 5500~5700MHz / 5745~5825MHz |
| Putere emisie | 22 dBm |
| Alimentare | 12VDC / 1A PoE pasiv; 12VDC, 1A |
| Standard | IEEE 802.11 /a/n/ac |
| Management | WEB, iVMS-4200 |
| Consum | max 4.5W |
![Antena Dual-Band, 3.3 dBi/5.5-7.1 dBi - MikroTik HGO-antenna-OUT [1]](https://rovision.ro/wp-content/uploads/2026/02/img42171large-324x324.png "Antena Dual-Band, 3.3 dBi/5.5-7.1 dBi - MikroTik HGO-antenna-OUT")

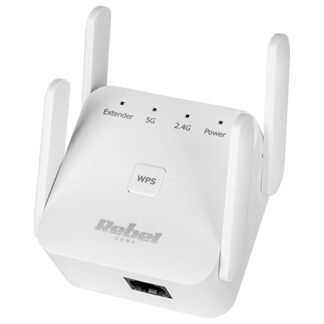

![Range Extender Wi-Fi Dual Band 2.4/5 GHz, 4 antene, Port LAN, 867Mbps - Rebel KOM1032 [1]](https://rovision.ro/wp-content/uploads/2025/12/KOM1032-324x324.jpg "Range Extender Wi-Fi Dual Band 2.4/5 GHz, 4 antene, Port LAN, 867Mbps - Rebel KOM1032")
