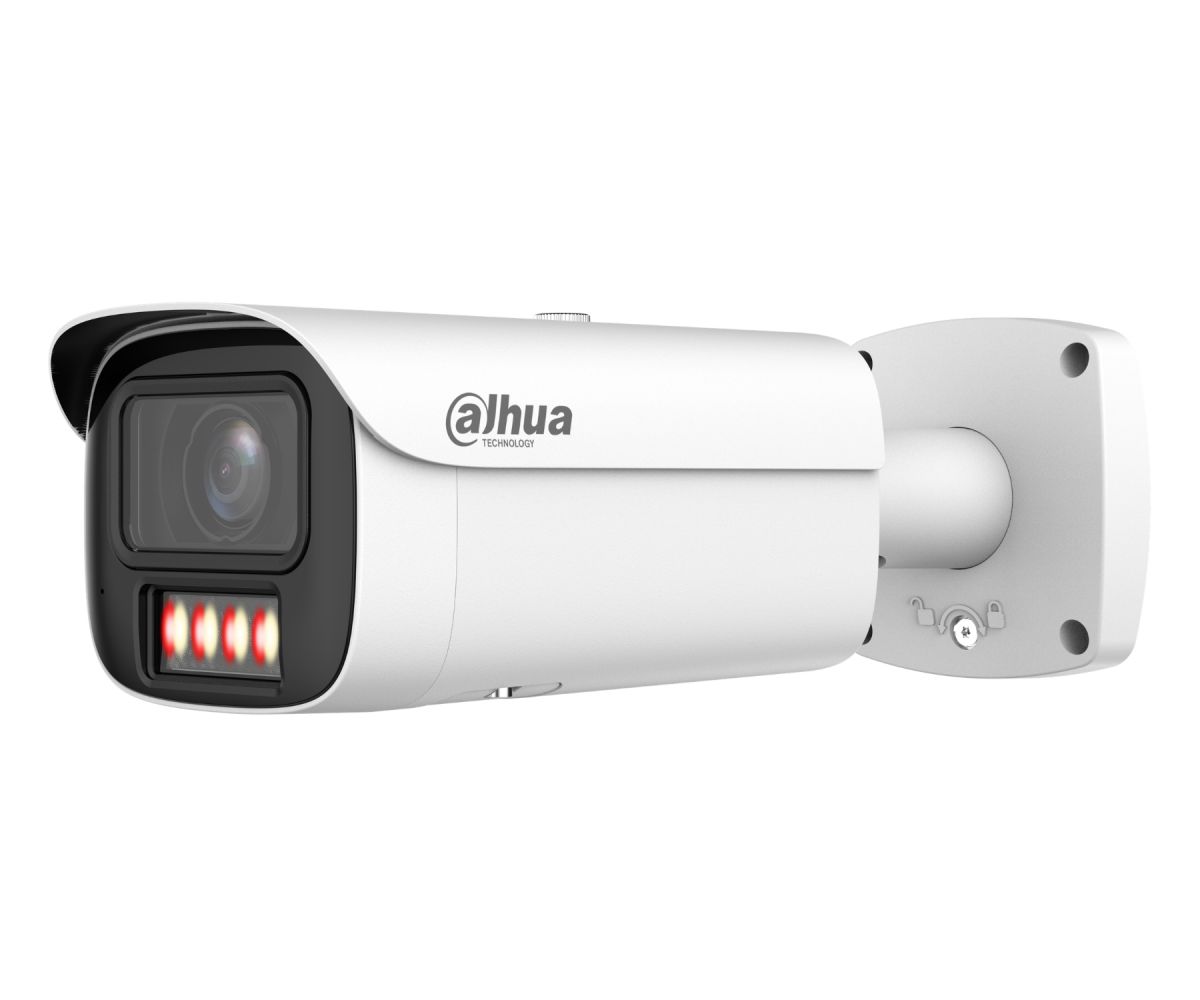

Camera IP Dahua WizMind 4MP Smart Dual Light IR 60m + lumina calda 60m, lentila varifocala 2.7-12mm, microfon incorporat, alarma 2 in/1 out, IK10, PoE, IPC-HFW5459E1-ZE-IL

Camera IP Dahua IPC-HFW5459E1-ZE-IL este o camera de supraveghere bullet varifocala din seria WizMind, cu rezolutie 4MP, senzor CMOS de 1/1.8″ si tehnologie Smart Dual Light. Modelul ofera imagini clare la rezolutie 2688 x 1520 pixeli, iluminare IR pana la 60 m si lumina calda pana la 60 m, fiind potrivit pentru monitorizarea spatiilor rezidentiale, comerciale, industriale sau perimetrale. Camera include lentila motorizata varifocala 2.7-12mm, microfon incorporat, intrare si iesire audio, alarma 2 in/1 out, stocare pe card microSD de pana la 1TB si functii AI avansate precum AcuPick, SMD 4.0, detectie faciala, people counting, heat map, video metadata si protectie perimetrala. Alimentarea se poate face la 12V DC, PoE+ sau ePoE, iar carcasa metalica cu protectie IP67 si IK10 permite utilizarea la exterior si in zone expuse.

Specificatii tehnice:

• Tip produs: camera IP bullet varifocala
• Brand: Dahua
• Serie: WizMind 5 Series, Smart Dual Light
• Model: IPC-HFW5459E1-ZE-IL
• Senzor imagine: 1/1.8″ CMOS
• Rezolutie maxima: 2688 x 1520 pixeli, 4MP
• ROM: 4GB
• RAM: 2GB
• Sistem de scanare: progresiv
• Viteza obturator electronic: auto / manual, 1/3 s – 1/100000 s
• Iluminare minima color: 0.0007 lux @ F1.8, 30 IRE
• Iluminare minima alb-negru: 0.0004 lux @ F1.8, 30 IRE
• Iluminare minima cu iluminator activ: 0 lux
• Raport semnal/zgomot: >56 dB
• Distanta iluminare IR: pana la 60 m
• Distanta lumina calda: pana la 60 m
• Control iluminator: automat / manual / Zoomprio
• Tip iluminator: multi-core IR + lumina calda
• Numar iluminatoare: 4
• Ajustare Pan: 0 – 360
• Ajustare Tilt: 0 – 90
• Ajustare rotatie: 0 – 360
• Tip lentila: motorizata varifocala
• Montura lentila: φ14
• Distanta focala: 2.7 – 12 mm
• Diafragma maxima: F1.8
• Camp vizual orizontal: 115 – 47
• Camp vizual vertical: 62 – 27
• Camp vizual diagonal: 137 – 54
• Control iris: automat
• Tip control iris: DC-Iris
• Distanta minima focalizare: 0.13 m
• DORI wide detectie: 57.5 m
• DORI wide observare: 23.0 m
• DORI wide recunoastere: 11.5 m
• DORI wide identificare: 5.8 m
• DORI tele detectie: 130.8 m
• DORI tele observare: 52.3 m
• DORI tele recunoastere: 26.2 m
• DORI tele identificare: 13.1 m
• IVS protectie perimetrala: intrusion, tripwire, fast moving, loitering detection, people gathering, parking detection, stay detection
• Clasificare IVS: vehicul, animal, persoana
• SMD: SMD 4.0
• AcuPick: da
• Detectie faciala: da
• People Counting: tripwire people counting, people counting in area, queue management
• Heat Map: da
• Video Metadata: vehicul motorizat, vehicul nemotorizat, fata, corp uman
• Smart Search: da, cu Smart NVR compatibil
• Compresie video: H.265, H.264, H.264H, H.264B, MJPEG pe sub-stream
• AI Coding: AI H.265, AI H.264
• Smart Codec: Smart H.265+, Smart H.264+
• Main stream: 2688 x 1520 la 1 – 25/30 fps
• Sub stream: 704 x 576 la 1 – 25 fps / 704 x 480 la 1 – 30 fps
• Third stream: 1920 x 1080 la 1 – 25/30 fps
• Fourth stream: 1280 x 720 la 1 – 25/30 fps
• Capacitate streaming: 4 stream-uri
• Rezolutii suportate: 4M, 3M, 1080p, 1.3M, 720p, D1, VGA, CIF
• Control rata biti: VBR / CBR
• Rata biti H.264: 3 kbps – 16384 kbps
• Rata biti H.265: 3 kbps – 16384 kbps
• Zi / noapte: auto ICR / color / alb-negru
• BLC: da
• HLC: da
• WDR: 140 dB
• SSA: da
• Balans de alb: auto, natural, street lamp, outdoor, manual, regional custom
• Control gain: auto / manual
• Reducere zgomot: 3D NR
• Detectie miscare: pornit / oprit, 4 zone rectangulare
• ROI: da, 4 zone
• Stabilizare imagine: EIS
• Smart Illumination: da
• Smart Dual Light: da
• Defog: da
• Rotire imagine: 0 / 90 / 180 / 270
• Mirror: da
• Masca de confidentialitate: 4 mozaicuri sau 8 blocuri color
• LDC: da
• Microfon incorporat: da
• Intrare audio: 1 canal RCA
• Iesire audio: 1 canal RCA
• Compresie audio: G.711a, G.711Mu, PCM, G.726, G.723
• Evenimente alarma: fara card SD, card SD plin, eroare card SD, deconectare retea, conflict IP, acces ilegal, detectie miscare, sabotaj video, tripwire, intrusion, fast moving, loitering detection, people gathering, parking detection, schimbare scena, detectie audio, detectie tensiune, alarma externa, detectie faciala, video metadata, SMD, people counting in area, stay detection, people counting, people number error detection, queue people number alarm, queue time alarm, exceptie de securitate, defocus detection
• Avertizare sonora: 11 alarme sonore incluse, suport pentru 10 alarme sonore personalizate
• Volum avertizare sonora: 0 – 100
• Numar redari avertizare sonora: 1 – 10
• Port retea: RJ45 10/100 Enhancement Base-T
• Protocoale retea: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P, Auto Registration
• Interoperabilitate: ONVIF Profile S, G, T si M; CGI
• Utilizatori / host: 20
• Latime de banda totala: 80M
• Stocare: FTP, SFTP, card microSD pana la 1TB, NAS
• Browsere compatibile: IE 11 si versiuni ulterioare, Chrome 102 si versiuni ulterioare, Firefox 88 si versiuni ulterioare
• Software management: DSS, DMSS, DoLynk Care
• Aplicatie mobila: iOS, Android
• Intrare alarma: 2 canale, wet contact, 5mA 3-5V DC
• Iesire alarma: 1 canal, wet contact, 300mA 12V DC
• Alimentare: 12V DC ±30% / PoE+ 802.3at / ePoE
• Dual Power Backup: da
• Consum basic 12V DC: 3.7W
• Consum basic PoE: 5W
• Consum maxim 12V DC: 12.9W
• Consum maxim PoE: 16.1W
• ePoE: da
• Temperatura de functionare: -40C pana la +60C
• Umiditate de functionare: maximum 95%, fara condens
• Temperatura de stocare: -40C pana la +60C
• Umiditate de stocare: maximum 95%, fara condens
• Protectie la intemperii: IP67
• Protectie antivandal: IK10
• Nivel anticoroziune: protectie de baza
• Material carcasa: metal
• Dimensiuni: 279.8 x 96.7 x 94.9 mm
• Greutate neta: 1.09 kg
• Greutate bruta: 1.39 kg
