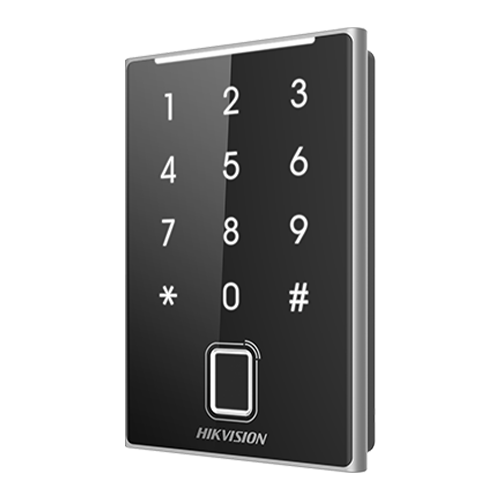

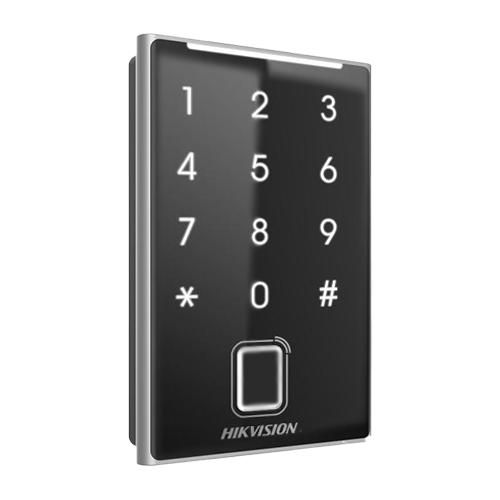

Descopera un cititor multifunctional de ultima generatie: DS-K1109DKFB, ideal pentru sisteme moderne de control acces:
- Compatibilitate extinsa suporta protocoale RS-485 si Wiegand (W26/W34) pentru integrare usoara in orice infrastructura.
- Citire avansata pentru carduri DESfire, Felica si M1, oferind flexibilitate maxima in utilizare.
- Autentificare multipla acces rapid prin card, parola sau amprenta, pentru un nivel superior de securitate.
- Modul Bluetooth integrabil, ce permite autentificare contactless direct de pe dispozitive mobile.
- Functie anti-sabotaj (Tamper-Proof) pentru protectie completa impotriva manipularii neautorizate.
- Capacitate impresionanta pana la 5.000 de amprente stocate in siguranta.
Solutia perfecta pentru birouri, cladiri comerciale sau spatii industriale ce necesita acces rapid, sigur si inteligent.
Specificatii tehnice:
- Producator HIKVISION
- Cartele suportate MIFARE 13.56MHz (M1), DESfire, Felica
- Conectivitate RS-485, Wiegand 26/34
- Metode de autentificare card, parole, fingerprint, cod cifru
- Capacitate amprente 5000
- Bluetooth Cand modulul este conectat prin RS-485
- Tastatura 12 butoane (0 ~ 9, *, #)
- Buzzer Integrat
- Temperatura de functionare -40C ~ +65C, IP65
- Alimentare 12VDC
- Consum max. 14 W
- Dimensiuni 125 mm x 84.5 mm x 18 mm
- Greutate ~ 1 Kg
