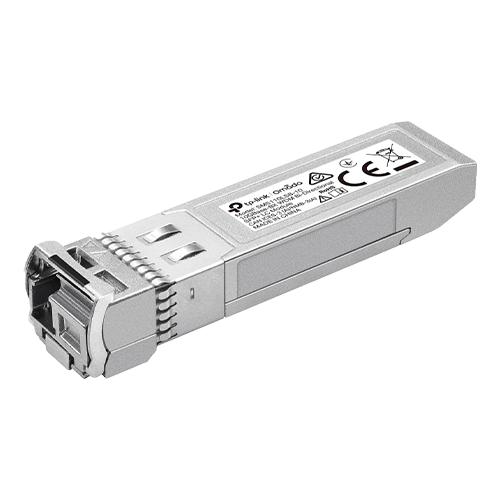

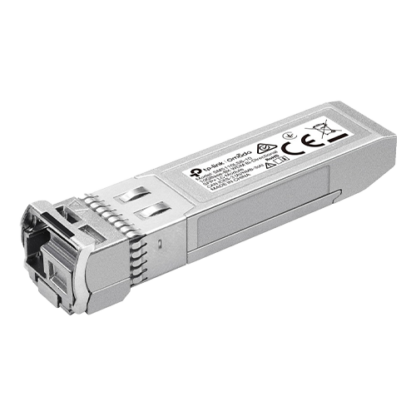

Modul SFP+ LC SM5110LSB-10 10GBase-BX WDM Bi-Directional – TP-Link
SM5110LSB-10 este proiectat pentru a extinde distanta de transmisie pana la 10 km cu o rata maxima de 10 Gbps. Este un transceiver SFP+ monomodal care suporta transmiterea bidirectionala a datelor, ceea ce reduce costurile.
Nota: Utilizati SM5110LSA-10 + SM5110LSB-10 impreuna pentru o conectivitate rapida si fiabila!
Caracteristici tehnice:
- Suporta tehnologia bi-directionala WDM, folosind un singur fir de fibra, economisind costuri
- Transceiver LC SFP+ monomod
- Hot-Pluggable cu flexibilitate maxima
- Suporta monitorizarea digitala a diagnosticului (DDM)
- Compatibil cu 10G Small Form Pluggable Multi-Source Agreement (SFP+)
- Compatibil cu switch-uri cu porturi 10G precum SG3428X si SG3452X
Specificatii tehnice:
- Standarde si protocoale IEEE 802.3ae, SFF 8431, SFF 8432, SFF-8472
- Lungime de unda TX 1270nm – RX 1330nm
- Dimensiuni 57 x 14 x 12.0 mm
- Alimentare 3.3V
- Tip fibra 9um/125um Single-Mode
- Lungimea maxima a cablului 10km
- Rata de transfer a datelor 10.3125 Gbps
- Tip Port LC/UPC
