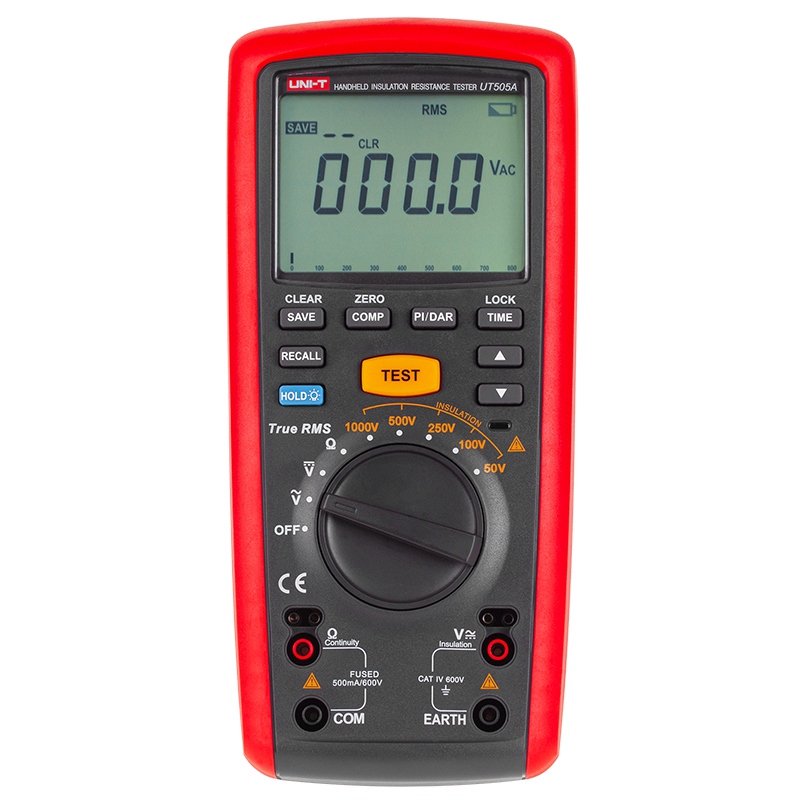

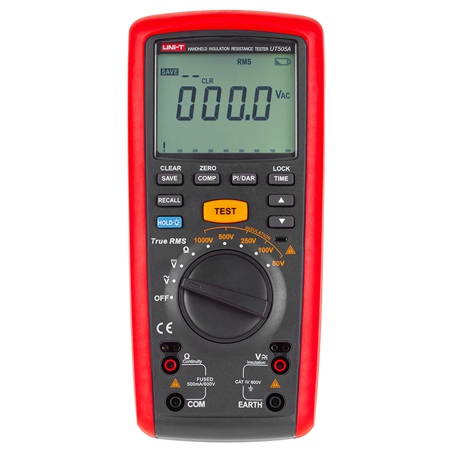

Multimetru rezistenta izolatie UT505A UNI-T

Rezistenta de izolatie:
Tensiune de testare: 50V / 100V / 250V / 500V / 1000V; 0% – 10%
50V: 0.01 MOhm ~ 50, 0 MOhm; ± (3% + 5)
100V: 0.01 MOhm ~ 100, 0 MOhm; ± (3% + 5)
250V: 0.01 MOhm ~ 200, 0 MOhm; ± (1, 5% + 5)
500V: 0.01 MOhm ~ 500 MOhm; ± (1, 5% + 5)
1000V: 0, 1 MOhm ~ 2000 MOhm; ± (1, 5% + 5)
2.0GOhm ~ 9.9GOhm; ± (10% + 3)
10.0GOhm ~ 20Gohm; ± (20% + 10)
Curentul nominal: 50V (R = 50KOhm) 1mA 0% ~ 10%
100V (R = 100 KOhm) 1mA 0% ~ 10%
250V (R = 250 KOhm) 1mA 0% ~ 10%
500V (R = 500 KOhm) 1mA 0% ~ 10%
1000V (R = 1 MW) 1mA 0% ~ 10%
Tensiune DC: 0.0V ~ 600.0V; ± (2% + 3)
Tensiune AC: 0.0V ~ 600.0V; ± (2% + 3)
Scalare automata
RMS
Masurare coeficient absorbtie: 60s /15s si 60s/ 30s
Descarcare automata
Oprire automata
Continuitate
Afisaj cu iluminare de fundal
Indicator pentru baterie descarcata
Alimentare: 6 x 1, 5 V (LR6)
