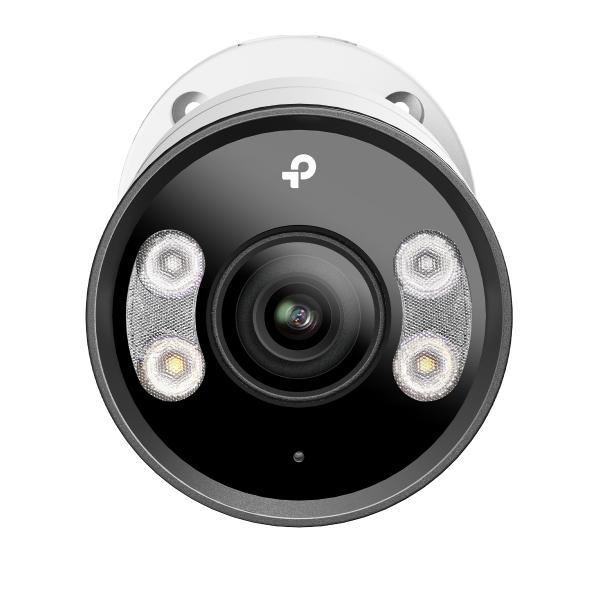

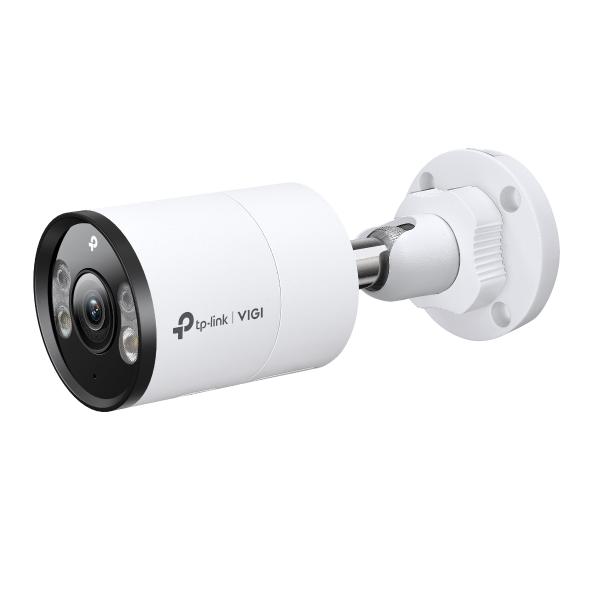

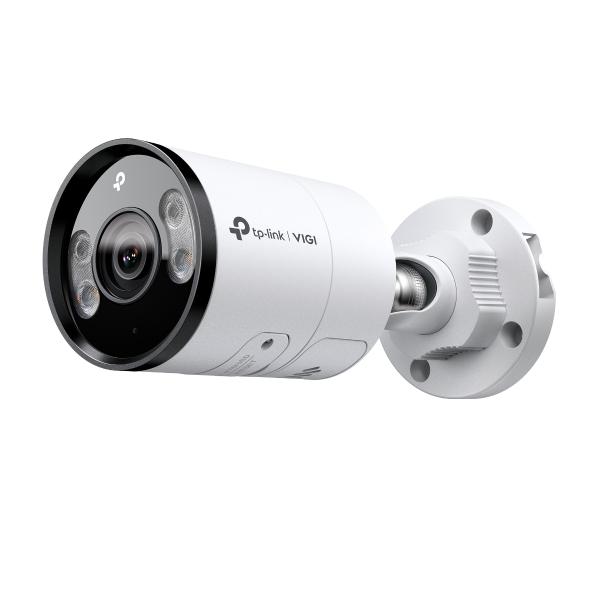

Camera IP Bullet TP-Link VIGI InSight S345, 4MP Full-Color, IR 30m si lumina alba 30m, lentila fixa 2.8mm/4mm/6mm, PoE, IP67, INSIGHT S345(2.8MM)

TP-Link VIGI InSight S345 este o camera IP Bullet de exterior, construita pentru supraveghere profesionala in parcari, depozite, curti, intrari, zone comerciale sau perimetre unde este importanta imaginea color inclusiv pe timp de noapte. Camera ofera rezolutie 4MP, vedere Full-Color 24/7, iluminare IR si lumina alba pana la 30 m, analiza pentru persoane si vehicule, clasificare inteligenta, detectii smart si aparare activa prin avertizare sonora si lumina alba intermitenta. Modelul include microfon si difuzor pentru comunicare audio bidirectionala, carcasa metalica, slot microSD pana la 512 GB, alimentare PoE sau 12V DC si protectie IP67 pentru utilizare la exterior.

Specificatii tehnice:

• Producator: TP-Link
• Gama: VIGI
• Model: InSight S345
• Tip camera: camera IP Bullet de exterior
• Rezolutie maxima: 4MP, 2688 x 1520 px
• Senzor imagine: 1/2.7” Progressive Scan CMOS
• Iluminare minima: 0.005 Lux color / 0 Lux cu IR sau lumina alba
• Shutter speed: 1/3 – 1/10000 s
• Slow shutter: da
• Mecanism zi/noapte: filtru IR-Cut
• Comutare zi/noapte: Unified / Scheduled / Auto
• Lentila: fixa
• Distanta focala: 2.8 mm / 4 mm / 6 mm
• Apertura: F1.6
• Unghi vizual 2.8 mm: 100 orizontal, 54 vertical, 118 diagonal
• Unghi vizual 4 mm: 80.4 orizontal, 41.8 vertical, 98.7 diagonal
• Unghi vizual 6 mm: 52.7 orizontal, 29 vertical, 60.8 diagonal
• Montura lentila: M12
• Distanta DORI 2.8 mm: detectie 64 m, observare 27 m, recunoastere 13 m, identificare 6 m
• Distanta DORI 4 mm: detectie 80 m, observare 33 m, recunoastere 16 m, identificare 8 m
• Distanta DORI 6 mm: detectie 120 m, observare 50 m, recunoastere 24 m, identificare 12 m
• Ajustare unghi: pan 0 – 360, tilt 0 – 90, rotatie 0 – 360
• Iluminare IR: 2 LED-uri IR
• Distanta IR: pana la 30 m
• Lungime unda IR: 850 nm
• Lumina alba: 2 LED-uri
• Distanta lumina alba: pana la 30 m
• Control iluminator: Auto / Scheduled / Always On / Always Off
• Vedere nocturna: Full-Color 24/7
• Compresie video main stream: H.265+, H.265, H.264+, H.264
• Compresie video sub-stream: H.265, H.264
• Rezolutii main stream: 2688 x 1520, 2560 x 1440, 2304 x 1296, 2048 x 1280, 1920 x 1080, 1280 x 720
• Rezolutii sub-stream: 848 x 480, 704 x 576, 640 x 480, 640 x 360, 352 x 288, 320 x 240
• Frame rate main stream: pana la 25 fps la 50Hz / pana la 30 fps la 60Hz
• Frame rate sub-stream: pana la 25 fps la 50Hz / pana la 30 fps la 60Hz
• Bitrate video main stream: 256 Kbps – 6 Mbps
• Bitrate video sub-stream: 64 Kbps – 512 Kbps
• Control bitrate: CBR / VBR
• Imbunatatire imagine: BLC, 3D DNR, HLC si SmartIR
• WDR: True WDR 120 dB
• SNR: minimum 52 dB
• Setari imagine: mirror, brightness, contrast, saturation, sharpness, exposure, WDR, white balance, prevenire supraexpunere IR si HLC
• Privacy mask: pana la 4 zone
• ROI: 1 regiune
• OSD: da
• Detectie smart: intrusion detection, line-crossing, region entering, region exiting, object abandoned, object removal, loitering detection, people detection, vehicle detection, abnormal sound detection si scene change detection
• Detectie de baza: motion detection cu clasificare persoane/vehicule, video tampering si illegal login
• Analiza AI: People & Vehicle Analytics
• Clasificare: persoane si vehicule
• Alarmare: inregistrare pe card, notificari push, avertizare sonora si lumina alba intermitenta
• Audio: microfon si difuzor integrate
• Comunicare audio: bidirectionala
• Raza microfon: pana la 5 m
• Compresie audio: da
• Rata esantionare audio: 8 kHz
• Bitrate audio: 64 Kbps, G.711 alaw
• Filtrare zgomot ambiental: da
• Interfata retea: 1 port RJ45 10/100 Mbps cu PoE
• Protocoale: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
• ONVIF: da, Profile S/T/G
• Vizualizare simultana: 3 main streams si 3 sub-streams
• Clienti compatibili: VIGI App, VIGI Security Manager, Web UI, VIGI VMS si VIGI Cloud VMS
• Cloud: da
• Securitate: protectie parola, criptare HTTPS, filtru adrese IP si digest authentication
• Stocare locala: slot microSD integrat, pana la 512 GB
• Card microSD inclus: nu
• Reset button: da
• Alimentare: 12V DC ±5% sau PoE
• Consum maxim 12V DC: 9.7 W
• PoE: da, 802.3af/at, Class 0
• Consum maxim PoE: 10.7 W
• Material: metal
• Protectie: IP67
• Temperatura de operare: -30C ~ +60C
• Umiditate operare: maximum 95%, fara condens
• Dimensiuni: 184 x 74 x 74 mm
• Greutate neta: 0.525 kg
• Certificari: CE, NTRA, VCCI, KC, BSMI, FCC, IC
