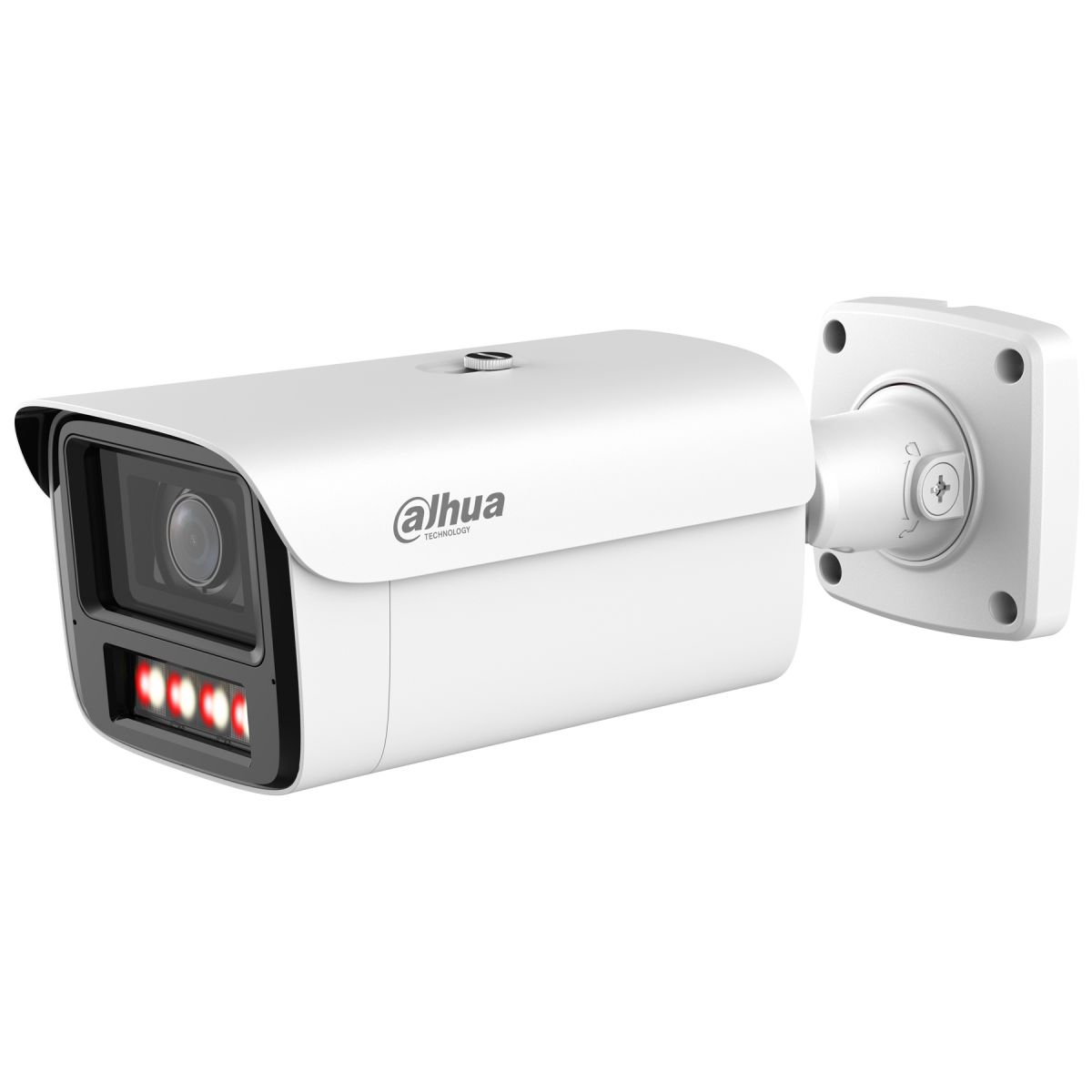

Camera IP Dahua WizMind 4MP WizColor Smart Dual Light IR 60m + lumina calda 60m, lentila varifocala 2.7-12mm, microfon dual si speaker, alarma audio-vizuala, alarma 2 in/2 out, IK10, PoE, IPC-HFW5459Z-ZHE-PV-2712-PRO

Camera IP Dahua IPC-HFW5459Z-ZHE-PV-2712-PRO este o camera de supraveghere bullet varifocala din seria WizMind, cu rezolutie 4MP, tehnologie WizColor si senzor CMOS de 1/1.8″, potrivita pentru monitorizarea spatiilor rezidentiale, comerciale, industriale sau perimetrale. Modelul ofera imagini clare la rezolutie 2688 x 1520 pixeli, iluminare Smart Dual Light cu IR pana la 60 m si lumina calda pana la 60 m, lentila motorizata varifocala 2.7-12mm si functii avansate de analiza video. Camera include microfon dual, speaker incorporat, audio bidirectional, alarma audio-vizuala prin lumina calda si avertizare sonora, alarma 2 in/2 out, RS-485, stocare microSD pana la 1TB, AcuPick, detectie faciala, people counting, heat map, video metadata si protectie perimetrala. Alimentarea se poate face la 12V DC, PoE+ sau ePoE, iar protectia IP67 si IK10 permite utilizarea in exterior si in zone expuse.

Specificatii tehnice:

• Tip produs: camera IP bullet varifocala
• Brand: Dahua
• Serie: WizMind 5 Series, Pro, WizColor
• Model: IPC-HFW5459Z-ZHE-PV-2712-PRO
• Senzor imagine: 1/1.8″ CMOS
• Rezolutie maxima: 2688 x 1520 pixeli, 4MP
• ROM: 4GB
• RAM: 2GB
• Sistem de scanare: progresiv
• Viteza obturator electronic: auto / manual, 1/3 s – 1/100000 s
• Iluminare minima color: 0.0003 lux @ F1.2, 30 IRE
• Iluminare minima alb-negru: 0.0001 lux @ F1.2, 30 IRE
• Iluminare minima cu iluminator activ: 0 lux
• Raport semnal/zgomot: >56 dB
• Distanta iluminare IR: pana la 60 m
• Distanta lumina calda: pana la 60 m
• Control iluminator: automat / manual / Zoomprio
• Tip iluminator: multi-core IR + lumina calda
• Numar iluminatoare: 4
• Ajustare Pan: 0 – 360
• Ajustare Tilt: 0 – 90
• Ajustare rotatie: 0 – 360
• Tip lentila: motorizata varifocala
• Montura lentila: φ16
• Distanta focala: 2.7 – 12 mm
• Diafragma maxima: F1.2
• Camp vizual orizontal: 98 – 48
• Camp vizual vertical: 52 – 27
• Camp vizual diagonal: 117 – 56
• Control iris: automat
• Tip iris: P-Iris
• IVS protectie perimetrala: intrusion, tripwire, fast moving, loitering detection, people gathering, parking detection, stay detection
• Clasificare IVS: persoana, vehicul, animal
• AcuPick: da
• Detectie faciala: da
• People Counting: da
• People Counting in Area: da
• Queue Management: da
• Heat Map: da
• Video Metadata: da
• Smart Search: da, cu NVR compatibil
• Compresie video: H.265, H.264, H.264H, H.264B, MJPEG pe sub-stream
• Smart Codec: Smart H.265+, Smart H.264+
• AI Coding: AI H.265, AI H.264
• Main stream: 2688 x 1520 la 1 – 25/30 fps
• Capacitate streaming: 4 stream-uri
• Control rata biti: VBR / CBR
• Zi / noapte: auto ICR / color / alb-negru
• BLC: da
• HLC: da
• WDR: 140 dB
• SSA: da
• Balans de alb: auto, natural, street lamp, outdoor, manual, regional custom
• Control gain: auto / manual
• Reducere zgomot: 3D NR
• Detectie miscare: da
• ROI: da
• Smart Illumination: da
• Smart Dual Light: da
• Defog: da
• Incalzire geam: da
• Rotire imagine: 0 / 90 / 180 / 270
• Mirror: da
• Masca de confidentialitate: da
• Microfon incorporat: da, microfon dual
• Speaker incorporat: da
• Audio bidirectional: da
• Intrare audio: 1 canal RCA
• Iesire audio: 1 canal RCA
• Compresie audio: G.711a, G.711Mu, PCM, G.726, G.723
• Light Warning: avertizare cu lumina calda
• Durata Light Warning: 5 – 30 secunde
• Frecventa flash: mare, medie, mica
• Sound Warning: 11 alarme sonore incluse, suporta 10 alarme sonore personalizate
• Volum avertizare sonora: 0 – 100
• Numar redari avertizare sonora: 1 – 10
• Intrare alarma: 2 canale
• Iesire alarma: 2 canale
• RS-485: 1 canal
• Iesire alimentare: 12V DC, maximum 165mA, varf 700mA
• Port retea: RJ45 10/100 Base-T
• Stocare locala: card microSD pana la 1TB
• Stocare retea: FTP, SFTP, NAS
• Interoperabilitate: ONVIF, CGI
• Software management: DSS, DMSS, DoLynk Care
• Aplicatie mobila: iOS, Android
• Alimentare: 12V DC ±30% / PoE+ 802.3at / ePoE
• Dual Power Backup: da
• Consum basic 12V DC: 5.3W
• Consum basic PoE: 6.4W
• Consum maxim 12V DC: 21.3W
• Consum maxim PoE: 24.2W
• Consum incalzire 12V DC: 3.2W
• Consum incalzire PoE: 3.6W
• ePoE: da
• Temperatura de functionare: -40C pana la +60C
• Umiditate de functionare: maximum 95%, fara condens
• Protectie la intemperii: IP67
• Protectie antivandal: IK10
• Dimensiuni: 302.6 x 110.8 x 99.1 mm
• Greutate neta: 1.65 kg
