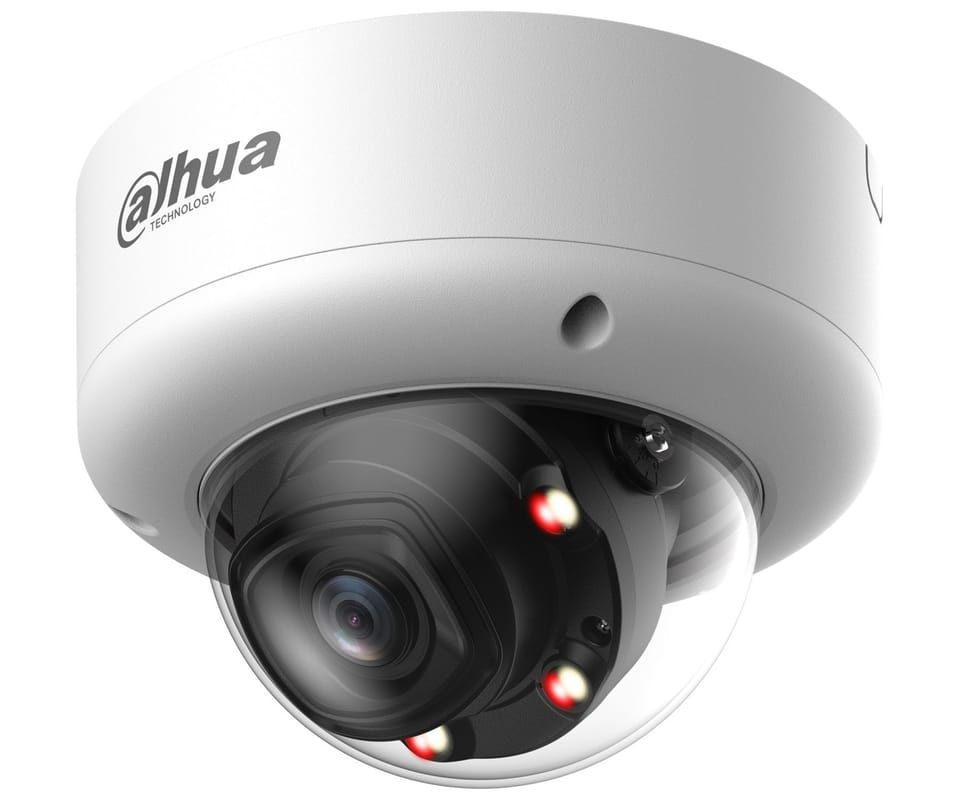

Camera IP Dahua WizMind 5MP Smart Dual Light IR 60m + lumina calda 50m, lentila varifocala 2.7-13.5mm, microfon incorporat, alarma 2 in/1 out, IK10, PoE, IPC-HDBW5559E1-ZE-IL-27135

Camera IP Dahua IPC-HDBW5559E1-ZE-IL-27135 este o camera de supraveghere dome antivandal din seria WizMind, cu rezolutie 5MP, senzor CMOS de 1/2.7″ si lentila motorizata varifocala 2.7-13.5mm. Modelul ofera imagini clare la rezolutie 2960 x 1668 pixeli si foloseste tehnologie Smart Dual Light, cu iluminare IR pana la 60 m si lumina calda pana la 50 m. Camera include microfon incorporat, intrare si iesire audio, alarma 2 in/1 out, stocare pe card microSD pana la 1TB si functii AI avansate precum AcuPick, SMD 4.0, detectie faciala, people counting, heat map, video metadata si protectie perimetrala. Alimentarea se poate face la 12V DC, PoE+ sau ePoE, iar protectia IP67 si IK10 permite utilizarea la exterior si in zone expuse.

Specificatii tehnice:

• Tip produs: camera IP dome antivandal varifocala
• Brand: Dahua
• Serie: WizMind 5 Series, Smart Dual Light
• Model: IPC-HDBW5559E1-ZE-IL-27135
• Senzor imagine: 1/2.7″ CMOS
• Rezolutie maxima: 2960 x 1668 pixeli, 5MP
• Frame rate maxim: 25/30 fps
• ROM: 4GB
• RAM: 2GB
• Sistem de scanare: progresiv
• Viteza obturator electronic: auto / manual, 1/3 s – 1/100000 s
• Iluminare minima color: 0.0009 lux @ F1.6, 30 IRE
• Iluminare minima alb-negru: 0.0005 lux @ F1.6, 30 IRE
• Iluminare minima cu iluminator activ: 0 lux
• Raport semnal/zgomot: >56 dB
• Distanta iluminare IR: pana la 60 m
• Distanta lumina calda: pana la 50 m
• Control iluminator: automat / manual / Zoomprio
• Tip iluminator: multi-core IR + lumina calda
• Numar iluminatoare: 4
• Ajustare Pan: 0° – 355°
• Ajustare Tilt: 0° – 80°
• Ajustare rotatie: 0° – 355°
• Tip lentila: motorizata varifocala
• Montura lentila: φ14
• Distanta focala: 2.7 – 13.5 mm
• Diafragma maxima: F1.6
• Camp vizual orizontal: 110° – 32°
• Camp vizual vertical: 57° – 18°
• Camp vizual diagonal: 134° – 37°
• Control iris: automat
• Distanta minima focalizare: 0.3 m
• DORI wide detectie: 65.4 m
• DORI wide observare: 26.1 m
• DORI wide recunoastere: 13.1 m
• DORI wide identificare: 6.5 m
• DORI tele detectie: 202.0 m
• DORI tele observare: 80.8 m
• DORI tele recunoastere: 40.4 m
• DORI tele identificare: 20.2 m
• IVS protectie perimetrala: intrusion, tripwire, fast moving, loitering detection, people gathering, parking detection, stay detection
• Clasificare IVS: vehicul, animal, persoana
• SMD: SMD 4.0
• AcuPick: da
• Detectie faciala: da
• People Counting: tripwire people counting, people counting in area, queue management
• Heat Map: da
• Video Metadata: vehicul motorizat, vehicul nemotorizat, fata, corp uman
• Smart Search: da, cu Smart NVR compatibil
• Compresie video: H.265, H.264, H.264H, H.264B, MJPEG pe sub-stream
• AI Coding: AI H.265 / AI H.264
• Smart Codec: Smart H.265+ / Smart H.264+
• Main stream: 2960 x 1668 la 1 – 25/30 fps
• Sub stream: 704 x 576 la 1 – 25 fps / 704 x 480 la 1 – 30 fps
• Third stream: 1920 x 1080 la 1 – 25/30 fps
• Fourth stream: 1280 x 720 la 1 – 25/30 fps
• Capacitate streaming: 4 stream-uri
