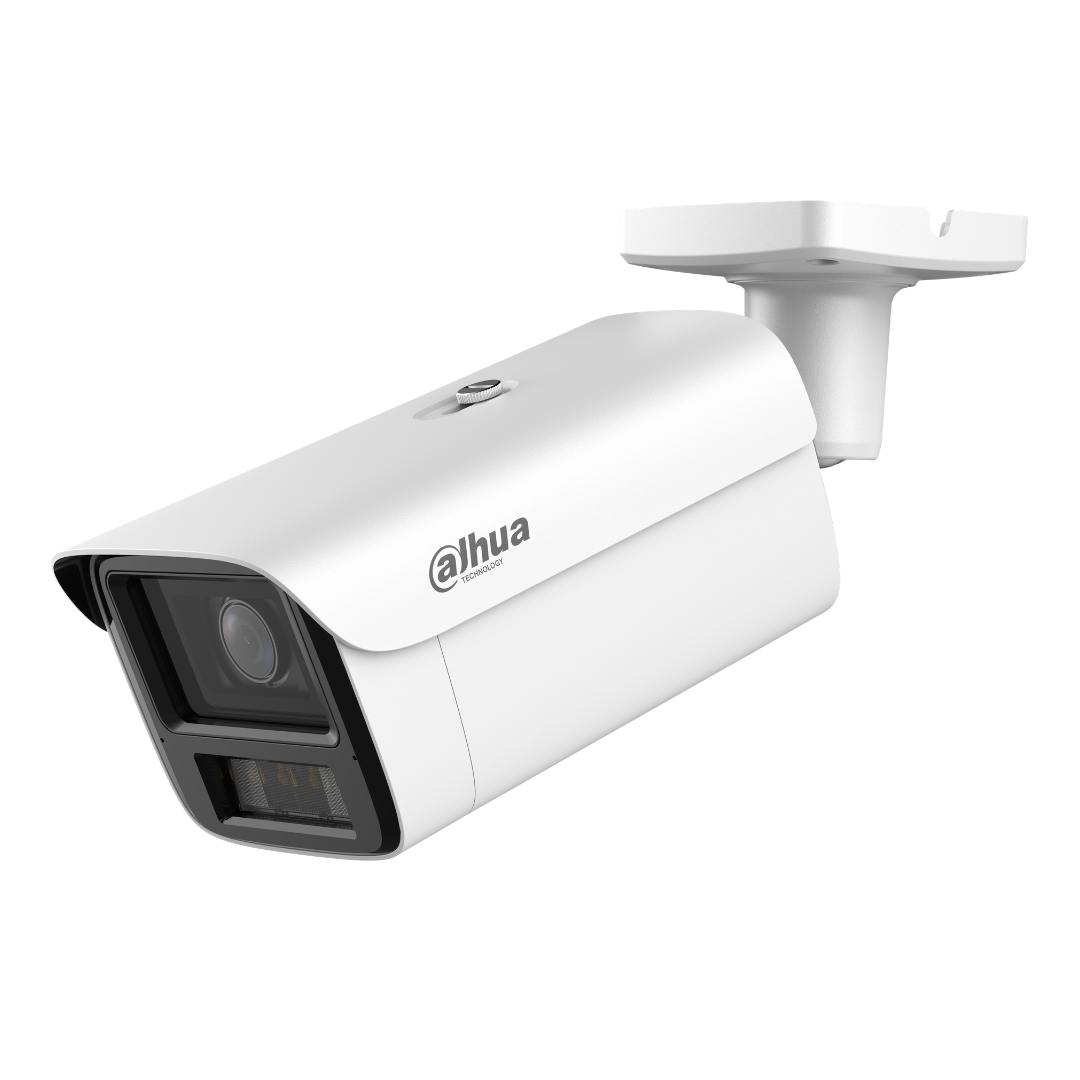

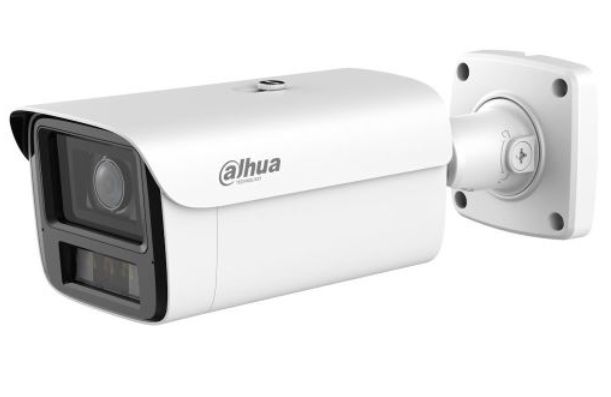

Camera IP Dahua WizMind 8MP WizColor Smart Dual Light IR 60m + lumina calda 60m, lentila varifocala 2.7-12mm, microfon dual si speaker, alarma audio-vizuala, alarma 2 in/2 out, IK10, PoE, IPC-HFW5859Z-ZHE-PV-2712-PRO

Camera IP Dahua IPC-HFW5859Z-ZHE-PV-2712-PRO este o camera de supraveghere bullet varifocala din seria WizMind, cu rezolutie 8MP 4K, senzor CMOS de 1/1.8″ si tehnologie WizColor, conceputa pentru monitorizare profesionala in conditii dificile de iluminare. Modelul ofera imagini clare la rezolutie 3840 x 2160 pixeli, lentila motorizata varifocala 2.7-12mm si iluminare Smart Dual Light, cu IR pana la 60 m si lumina calda pana la 60 m. Camera include microfon dual, speaker incorporat, audio bidirectional, alarma audio-vizuala prin lumina calda si avertizare sonora, alarma 2 in/2 out, RS-485, stocare microSD pana la 1TB si functii AI avansate precum AcuPick, SMD 4.0, detectie faciala, people counting, heat map, video metadata si protectie perimetrala. Carcasa cu protectie IP67 si IK10 permite utilizarea in exterior si in zone expuse.

Specificatii tehnice:

• Tip produs: camera IP bullet varifocala
• Brand: Dahua
• Serie: WizMind 5 Series, Pro, WizColor
• Model: IPC-HFW5859Z-ZHE-PV-2712-PRO
• Senzor imagine: 1/1.8″ CMOS
• Rezolutie maxima: 3840 x 2160 pixeli, 8MP
• Frame rate maxim: 25/30 fps
• ROM: 4GB
• RAM: 2GB
• Sistem de scanare: progresiv
• Viteza obturator electronic: auto / manual, 1/3 s – 1/100000 s
• Iluminare minima color: 0.0006 lux @ F1.2, 30 IRE
• Iluminare minima alb-negru: 0.0003 lux @ F1.2, 30 IRE
• Iluminare minima cu iluminator activ: 0 lux
• Raport semnal/zgomot: >56 dB
• Distanta iluminare IR: pana la 60 m
• Distanta lumina calda: pana la 60 m
• Control iluminator: automat / manual / Zoomprio
• Tip iluminator: multi-core IR + lumina calda
• Numar iluminatoare: 4
• Tip lentila: motorizata varifocala
• Distanta focala: 2.7 – 12 mm
• Diafragma maxima: F1.2
• Control iris: automat
• Tip iris: P-Iris
• Tehnologie imagine: WizColor
• Smart Dual Light: da
• Smart Illumination: da
• Window Heating: da
• AcuPick: da
• SMD: SMD 4.0
• Detectie faciala: da
• People Counting: da
• People Counting in Area: da
• Queue Management: da
• Heat Map: da
• Video Metadata: da
• Protectie perimetrala: intrusion, tripwire, fast moving, loitering detection, people gathering, parking detection, stay detection
• Clasificare IVS: persoana, vehicul, animal
• Compresie video: H.265, H.264, H.264H, H.264B, MJPEG pe sub-stream
• Smart Codec: Smart H.265+, Smart H.264+
• AI Coding: AI H.265, AI H.264
• Main stream: 3840 x 2160 la 1 – 25/30 fps
• Sub stream: 704 x 576 la 1 – 25 fps / 704 x 480 la 1 – 30 fps
• Third stream: 1920 x 1080 la 1 – 25/30 fps
• Fourth stream: 1280 x 720 la 1 – 25/30 fps
• Capacitate streaming: 4 stream-uri
• Rezolutii suportate: 8M, 6M, 5M, 4M, 3M, 1080p, 1.3M, 720p, D1, VGA, CIF
• Control rata biti: VBR / CBR
• Rata biti H.264: 3 kbps – 16384 kbps
• Rata biti H.265: 3 kbps – 16384 kbps
• Zi / noapte: auto ICR / color / alb-negru
• WDR: da
• BLC: da
• HLC: da
• SSA: da
• Reducere zgomot: 3D NR
• ROI: da
• Stabilizare imagine: EIS
• Defog: da
• Rotire imagine: 0° / 90° / 180° / 270°
• Mirror: da
• Masca de confidentialitate: da
• Microfon incorporat: da, microfon dual
• Speaker incorporat: da
• Audio bidirectional: da
• Intrare audio: 1 canal RCA
• Iesire audio: 1 canal RCA
• Compresie audio: G.711a, G.711Mu, PCM, G.726, G.723
• Alarma audio-vizuala: da, lumina calda si avertizare sonora
• Light Warning: da
• Sound Warning: da
• Intrare alarma: 2 canale
• Iesire alarma: 2 canale
• Interfata RS-485: da
• Port retea: RJ45 10/100 Base-T
• Stocare locala: card microSD pana la 1TB
• Stocare retea: FTP, SFTP, NAS
• Interoperabilitate: ONVIF, CGI
• Utilizatori / host: 20
• Latime de banda totala: 80M
• Alimentare: 12V DC / PoE+ / ePoE
• Dual Power Backup: da
• ePoE: da
• Consum maxim: pana la 24.2W prin PoE
• Protectie la intemperii: IP67
• Protectie antivandal: IK10
• Material carcasa: metal
• Temperatura de functionare: -40°C pana la +60°C
• Umiditate de functionare: maximum 95%, fara condens
• Utilizare: interior / exterior

Descarcati fisa tehnica
