Camera IP Dahua WizMind 8MP WizColor Smart Dual Light IR 80m + lumina calda 60m, lentila 2.8mm, microfon dual si speaker, alarma audio-vizuala, alarma 1 in/1 out, IK10, PoE, IPC-HFW5859T1-ASE-PV-0280B-PRO

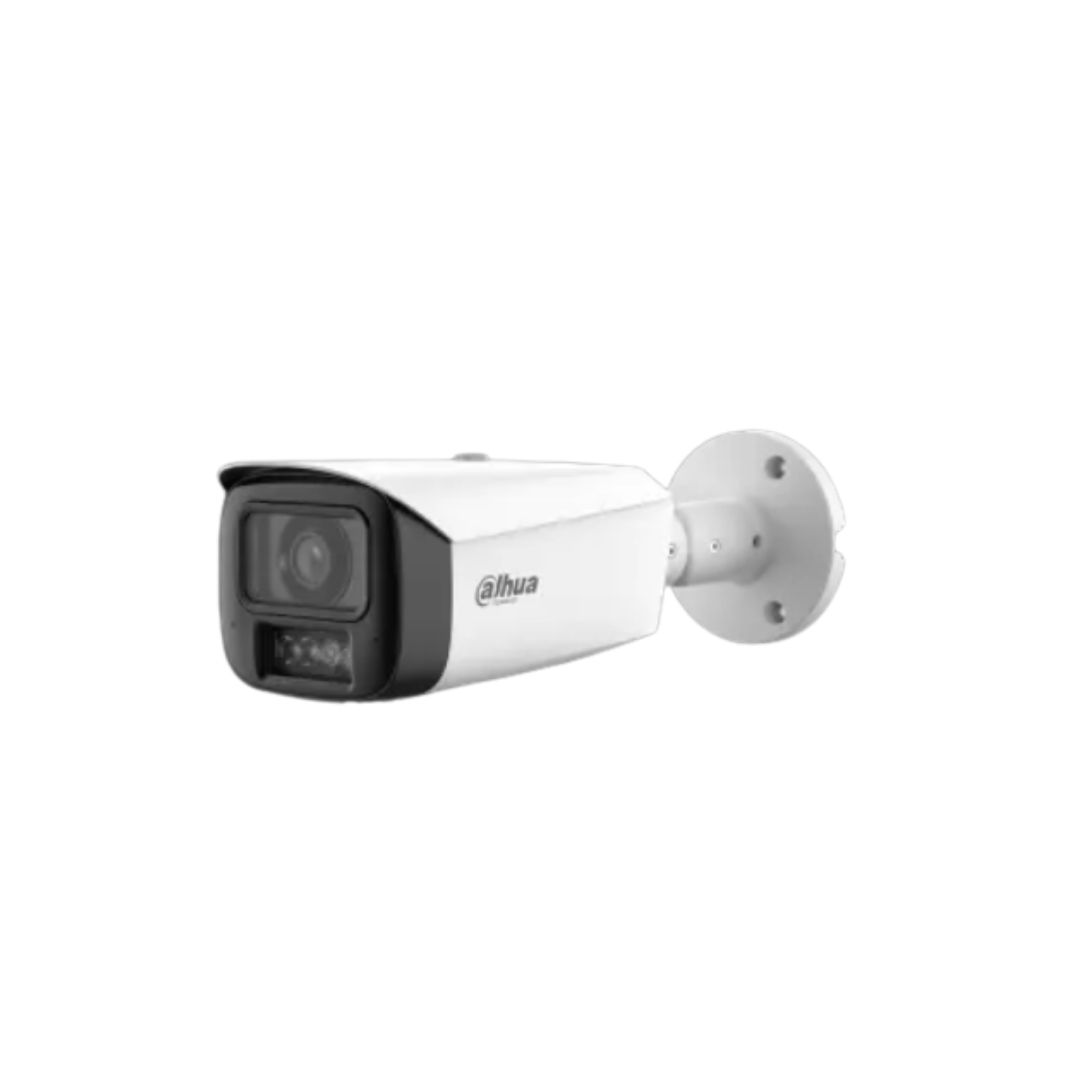

Camera IP Dahua IPC-HFW5859T1-ASE-PV-0280B-PRO este o camera de supraveghere bullet din seria WizMind, cu rezolutie 8MP 4K, senzor CMOS de 1/1.8″ si tehnologie WizColor, proiectata pentru monitorizare profesionala in conditii dificile de iluminare. Modelul ofera imagini clare la rezolutie 3840 x 2160 pixeli, lentila fixa de 2.8mm si iluminare Smart Dual Light, cu IR pana la 80 m si lumina calda pana la 60 m. Camera include microfon dual, speaker incorporat, audio bidirectional, alarma audio-vizuala prin lumina calda si avertizare sonora, alarma 1 in/1 out, RS-485, stocare pe card microSD pana la 1TB si functii AI avansate precum AcuPick, SMD 4.0, detectie faciala, people counting, heat map, video metadata si protectie perimetrala. Alimentarea se poate face la 12V DC, PoE+ sau ePoE, iar carcasa cu protectie IP67 si IK10 permite utilizarea in exterior si in zone expuse.

Specificatii tehnice:

• Tip produs: camera IP bullet
• Brand: Dahua
• Serie: WizMind 5 Series, Pro, WizColor
• Model: IPC-HFW5859T1-ASE-PV-0280B-PRO
• Senzor imagine: 1/1.8″ CMOS
• Rezolutie maxima: 3840 x 2160 pixeli, 8MP
• Frame rate maxim: 25/30 fps
• ROM: 4GB
• RAM: 2GB
• Sistem de scanare: progresiv
• Viteza obturator electronic: auto / manual, 1/3 s – 1/100000 s
• Iluminare minima color: 0.0005 lux @ F1.0, 30 IRE
• Iluminare minima alb-negru: 0.0003 lux @ F1.0, 30 IRE
• Iluminare minima cu iluminator activ: 0 lux
• Raport semnal/zgomot: >56 dB
• Distanta iluminare IR: pana la 80 m
• Distanta lumina calda: pana la 60 m
• Control iluminator: automat / manual
• Tip iluminator: multi-core IR + lumina calda
• Numar iluminatoare: 4
• Ajustare Pan: 0° – 360°
• Ajustare Tilt: 0° – 90°
• Ajustare rotatie: 0° – 360°
• Tip lentila: fixa
• Montura lentila: M16
• Distanta focala: 2.8mm
• Diafragma maxima: F1.0
• Camp vizual orizontal: 109°
• Camp vizual vertical: 59°
• Camp vizual diagonal: 131°
• Control iris: fix
• Distanta minima focalizare: 3.2 m
• DORI detectie: 82 m
• DORI observare: 32.8 m
• DORI recunoastere: 16.4 m
• DORI identificare: 8.2 m
• EPTZ: da
• Tehnologie imagine: WizColor
• Smart Dual Light: da
• Smart Illumination: da
• AI Rule Assist: da
• IVS protectie perimetrala: intrusion, tripwire, fast moving, loitering detection, people gathering, parking detection, stay detection
• Clasificare IVS: vehicul, animal, persoana
• SMD: SMD 4.0
• AcuPick: da
• Detectie faciala: da
• People Counting: tripwire people counting, people counting in area, queue management
• Heat Map: da
• Video Metadata: vehicul motorizat, vehicul nemotorizat, fata, corp uman
• Smart Search: da, cu NVR compatibil
• Compresie video: H.265, H.264, H.264H, H.264B, MJPEG pe sub-stream
• AI Coding: AI H.265, AI H.264
• Smart Codec: Smart H.265+, Smart H.264+
• Main stream: 3840 x 2160 la 1 – 25/30 fps
• Sub stream: 704 x 576 la 1 – 25 fps / 704 x 480 la 1 – 30 fps
• Third stream: 1920 x 1080 la 1 – 25/30 fps
• Fourth stream: 1280 x 720 la 1 – 25/30 fps
• Capacitate streaming: 4 stream-uri
• Rezolutii suportate: 8M, 6M, 5M, 4M, 3M, 1080p, 1.3M, 720p, D1, VGA, CIF
• Control rata biti: VBR / CBR
• Rata biti H.264: 3 kbps – 16384 kbps
• Rata biti H.265: 3 kbps – 16384 kbps
• Zi / noapte: auto ICR / color / alb-negru
• BLC: da
• HLC: da
• WDR: 130 dB
• SSA: da
• Balans de alb: auto, natural, street lamp, outdoor, manual, regional custom
• Control gain: auto / manual
• Reducere zgomot: 3D NR
• Detectie miscare: pornit / oprit, 4 zone rectangulare
• ROI: da, 4 zone
• Defog: da
• Rotire imagine: 0° / 90° / 180° / 270°
• Mirror: da
• Masca de confidentialitate: 4 mozaicuri sau 8 blocuri color
• LDC: da
• Microfon incorporat: da, microfon dual
• Speaker incorporat: da
• Audio bidirectional: da
• Intrare audio: 1 canal RCA
• Iesire audio: 1 canal RCA
• Compresie audio: G.711a, G.711Mu, PCM, G.726, G.723
• Alarma audio-vizuala: da, lumina calda si avertizare sonora
• Light Warning: lumina calda, flash sau continuu
• Durata Light Warning: 5 – 30 secunde
• Frecventa flash: mare, medie, mica
• Sound Warning: 11 alarme sonore incluse, suporta 10 alarme sonore personalizate
• Volum avertizare sonora: 0 – 100
• Numar redari avertizare sonora: 1 – 10
• Intrare alarma: 1 canal
• Iesire alarma: 1 canal
• Interfata RS-485: 1 canal
• Iesire alimentare: 12V DC, maximum 165mA, varf 700mA
• Port retea: RJ45 10/100 Base-T
• Protocoale retea: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, P2P, Auto Registration
• Interoperabilitate: ONVIF Profile S, G, T si M, CGI
• Utilizatori / host: 20
• Latime de banda totala: 80M
• Stocare locala: card microSD pana la 1TB
• Stocare retea: FTP, SFTP, NAS
• Browsere compatibile: IE 11 si versiuni ulterioare, Chrome 102 si versiuni ulterioare, Firefox 88 si versiuni ulterioare
• Software management: DSS, DMSS, DoLynk Care
• Aplicatie mobila: iOS, Android
• Alimentare: 12V DC ±30% / PoE+ 802.3at / ePoE
• Dual Power Backup: da
• Consum basic 12V DC: 4.1W
• Consum basic PoE: 4.8W
• Consum maxim 12V DC: 21.6W
• Consum maxim PoE: 24.2W
• ePoE: da
• Protectie la intemperii: IP67
• Protectie antivandal: IK10
• Nivel anticoroziune: protectie de baza
• Material carcasa: metal + plastic
• Temperatura de functionare: -40°C pana la +60°C
• Umiditate de functionare: maximum 95%, fara condens
• Dimensiuni: 127.6 x Ø122 mm
• Greutate neta: 1.09 kg
• Greutate bruta: 1.39 kg
