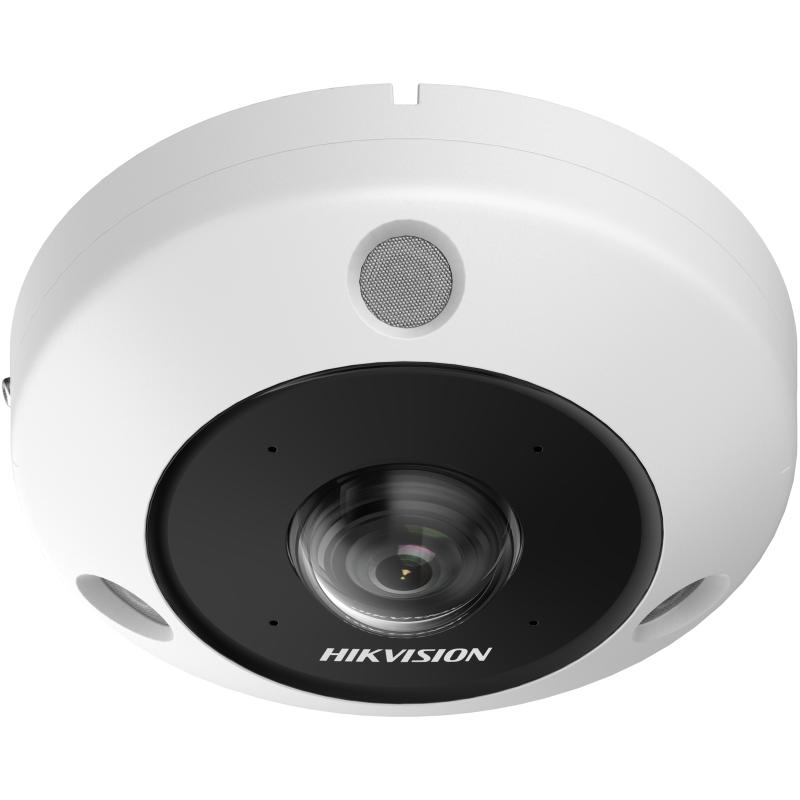

Camera IP exterior fisheye Hikvision DeepinView, 6MP, vedere 360 grade, IR 15m, lentila 1.16mm, 4 microfoane si difuzor, PoE, IP67, IK10, microSD 256GB, DS-2CD6365G1-IVS

Hikvision DS-2CD6365G1-IVS este o camera IP fisheye DeepinView de 6MP, proiectata pentru supraveghere panoramica la 360 grade, cu rezolutie maxima 2560 x 2560, lentila fixa de 1.16mm si iluminare IR pana la 15m. Camera integreaza 4 microfoane si 1 difuzor pentru audio bidirectional, slot microSD de pana la 256GB, audio I/O, alarma I/O, RS-485, WDR 120dB, 20 moduri de afisare live, functii smart si deep learning, alimentare 12V DC sau PoE si protectie IP67 + IK10. Este potrivita pentru spatii comerciale, retail, holuri, receptii, birouri, zone de acces si spatii interioare sau exterioare unde este nevoie de acoperire larga dintr-un singur punct de montaj.

Camera IP fisheye 6MP cu vedere panoramica 360 grade

DS-2CD6365G1-IVS foloseste un senzor 1/1.8 inch Progressive Scan CMOS si ofera rezolutie maxima 2560 x 2560. Formatul fisheye permite supravegherea panoramica a zonei monitorizate, cu imagine la 360 grade si moduri multiple de afisare pentru montaj pe perete, tavan sau masa.

Lentila 1.16mm cu unghi de 180 grade pe orizontala si verticala

Camera are lentila fixa de 1.16mm, diafragma F2.25 si unghi de vizualizare de 180 grade pe orizontala si 180 grade pe verticala. Aceasta configuratie este potrivita pentru acoperirea unor zone largi, cu mai putine camere instalate.

IR 15m pentru supraveghere in lumina slaba

Modelul are 3 iluminatoare IR, cu raza de pana la 15m si lungime de unda 850nm. Smart IR ajuta la adaptarea iluminarii in functie de scena, pentru vizibilitate mai buna pe timp de noapte sau in spatii cu lumina redusa.

20 moduri de afisare live si dewarping

Camera suporta pana la 20 moduri de afisare live, inclusiv fisheye, panorama 180 grade, panorama 360 grade, panorama + PTZ, Fisheye + 3PTZ, 4PTZ si 4PTZ Fusion. Functiile de dewarping transforma imaginea fisheye intr-un format mai usor de urmarit, util pentru monitorizare live si investigare video.

Audio bidirectional cu 4 microfoane si difuzor integrat

DS-2CD6365G1-IVS are 4 microfoane integrate si 1 difuzor integrat, plus intrare audio si iesire audio prin conectori de 3.5mm. Camera suporta comunicare audio bidirectionala si filtrare a zgomotului ambiental, utila in zone unde sunetul completeaza supravegherea video.

Functii smart si deep learning pentru analiza video

Camera include evenimente smart precum line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection, audio exception detection, defocus detection, unattended baggage detection si object removal detection. Functiile deep learning includ people counting, queue management, heat map si intersection analysis.

PoE, microSD, alarma I/O si protectie IP67 + IK10

Camera are port Gigabit RJ45, slot microSD pana la 256GB, 2 intrari si 2 iesiri de alarma, RS-485 si reset button. Alimentarea se poate face la 12V DC sau PoE IEEE 802.3af, Class 3, iar carcasa metalica are protectie IP67 si IK10 pentru montaj in zone expuse.

Specificatii tehnice camera IP exterior fisheye Hikvision DeepinView, 6MP, vedere 360 grade, IR 15m, lentila 1.16mm, 4 microfoane si difuzor, PoE, IP67, IK10, microSD 256GB, DS-2CD6365G1-IVS:

• Brand: Hikvision
• Model: DS-2CD6365G1-IVS
• Tip produs: camera IP fisheye DeepinView
• Rezolutie maxima: 2560 x 2560
• Senzor imagine: 1/1.8 inch Progressive Scan CMOS
• Iluminare minima: Color 0.01 Lux @ F2.25, AGC ON; B/W 0.005 Lux @ F2.25, AGC ON; B/W 0 Lux cu IR pornit
• Shutter: 1s pana la 1/100000s
• Day/Night: filtru IR-cut
• Tip lentila: fixa
• Distanta focala: 1.16mm
• Unghi vizualizare: 180 grade orizontal, 180 grade vertical
• Iris: fix
• Diafragma: F2.25
• Adancime camp: 0.2m pana la infinit
• DORI: detectie 23.2m, observare 9.2m, recunoastere 4.6m, identificare 2.3m
• Iluminare suplimentara: IR
• Distanta IR: pana la 15m
• Numar iluminatoare IR: 3
• Smart IR: da
• Lungime unda IR: 850nm
• HEOP: da
• Resurse HEOP: memorie 60MB, Smart-RAM 800MB, eMMC 2GB
• Putere calcul: 2 TOPS
• Open capability: HEOP 2.0 OpendevSDK
• Structura deep learning: Caffe, TensorFlow, PyTorch
• Limbaj programare: C, C++
• Stream 1, 50Hz/60Hz: 25fps / 30fps
• Fisheye View stream 1: 2560 x 2560, 2048 x 2048, 1280 x 1280
• 180 Panorama View stream 1: 2048 x 1536, 1920 x 1440
• 180 Dual Channel Panorama View stream 1: 2048 x 768, 1920 x 720
• Panorama View stream 1: 2048 x 1536, 1920 x 1440
• 4PTZ View stream 1: camera 01 / 02 / 03 / 04 la 1024 x 768
• Fisheye + 3PTZ View stream 1: camera 01 la 2048 x 2048 sau 1024 x 1024, camera 02 / 03 / 04 la 1024 x 768
• 4PTZ Fusion View stream 1: 2048 x 1536, 1600 x 1200
• Stream 2, 50Hz/60Hz: 25fps / 30fps
• Fisheye View stream 2: 720 x 720, 480 x 480
• 180 Panorama View stream 2: 640 x 480, 320 x 240
• 180 Dual Channel Panorama View stream 2: 640 x 480, 320 x 240
• Panorama View stream 2: 640 x 360, 320 x 240
• 4PTZ View stream 2: camera 01 / 02 / 03 / 04 la 640 x 480 sau 320 x 240
• Fisheye + 3PTZ View stream 2: camera 01 la 720 x 720, camera 02 / 03 / 04 la 640 x 480 sau 320 x 240
• Compresie video stream principal: H.265+ / H.265 / H.264+ / H.264
• Compresie video sub-stream: H.265 / H.264 / MJPEG
• Bitrate video: 32Kbps pana la 16Mbps
• H.264 Type: Baseline Profile, Main Profile, High Profile
• H.265 Type: Main Profile
• Control bitrate: CBR, VBR
• SVC: H.264 si H.265
• ROI: 4 regiuni fixe pentru fiecare stream
• Tipuri montaj suportate: perete, masa, tavan
• Moduri afisare: 20 moduri
• Decodare: hardware si software
• Compresie audio: G.711 / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC
• Bitrate audio: 64Kbps pentru G.711ulaw/G.711alaw, 16Kbps pentru G.722.1, 16Kbps pentru G.726, 32-192Kbps pentru MP2L2, 8-320Kbps pentru MP3, 16-64Kbps pentru AAC-LC
• Sampling audio: 8kHz / 16kHz / 32kHz / 48kHz
• Filtrare zgomot ambiental: da
• Protocoale retea: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets, SIP
• Live view simultan: pana la 20 canale
• API: ONVIF Profile S, Profile G, Profile T, ISAPI, SDK, ISUP, SIP
• Utilizatori: pana la 32
• Niveluri utilizatori: administrator, operator, user
• Stocare retea: NAS, NFS, SMB/CIFS, ANR
• Client software: iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
• Browser cu plug-in live view: IE 10, IE 11
• Browser fara plug-in live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+
• WDR: 120dB
• Functii imagine: BLC, HLC, 3D DNR, distortion correction, defog
• Privacy Mask: 8 zone poligonale programabile
• Port retea: 1 x RJ45 10M/100M/1000M self-adaptive Ethernet
• Stocare locala: slot microSD, suporta microSD/SDHC/SDXC pana la 256GB
• Microfoane integrate: 4
• Difuzor integrat: 1
• Intrare audio: 1 x line-in, jack 3.5mm, amplitudine maxima intrare 3.3Vpp, impedanta intrare 4.7kΩ
• Iesire audio: 1 x line-out, jack 3.5mm, amplitudine maxima iesire 3.3Vpp, impedanta iesire 100Ω
• Intrari alarma: 2
• Iesiri alarma: 2, maximum 24V DC, 1A
• RS-485: 1 interfata RS-485 half-duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive
• Reset button: da
• Evenimente standard: motion detection, video tampering alarm, alarm input and output, exception
• Evenimente smart: line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection, audio exception detection, defocus detection, unattended baggage detection, object removal detection
• People Counting: da
• Queue Management: da
• Heat Map: da
• Intersection Analysis: da
• Alimentare: 12V DC ±20%, 1A, maximum 11.5W, terminal block cu 2 fire
• PoE: IEEE 802.3af, Class 3, maximum 12.5W
• Material: metal
• Dimensiuni: 140.3 x 59.4mm
• Dimensiuni ambalaj: 260 x 230 x 135mm
• Greutate: aproximativ 715g
• Greutate cu ambalaj: aproximativ 1206g
• Temperatura de functionare: -40 grade C pana la +60 grade C
• Umiditate functionare: maximum 95%, fara condens
• Temperatura de stocare: -40 grade C pana la +60 grade C
• Umiditate stocare: maximum 95%, fara condens
• Functii generale: heartbeat, flash log, resetare parola prin email, protectie parola, resetare cu un buton, anti-banding
• Incalzire: da
• Lungime cablu: 0.31m
• Protectie: IP67, IK10
