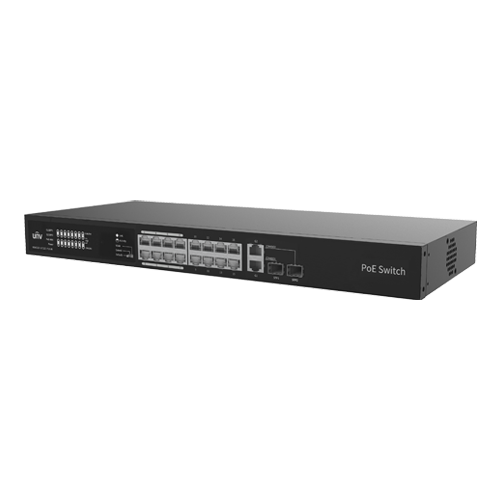

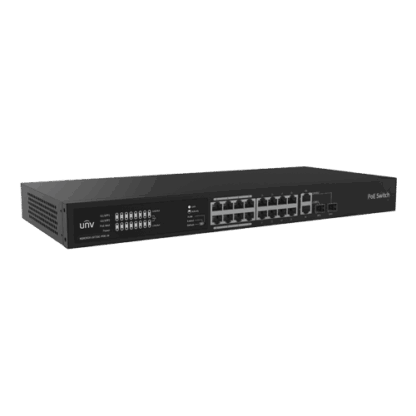

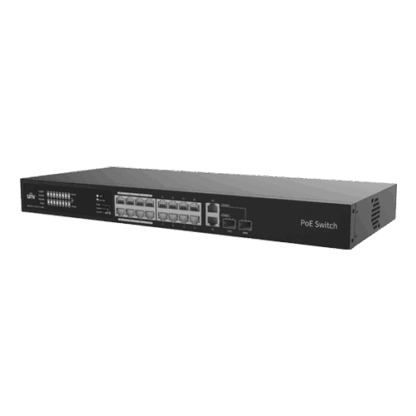

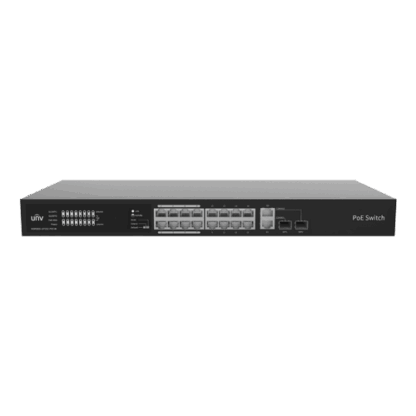

Switch PoE Uniview 16 porturi 10/100Mbps, 2x Combo Gigabit, 250W, EXTEND, VLAN, metalic
Switch-ul PoE Uniview este proiectat special pentru retelele de supraveghere IP, oferind 16 porturi PoE cu viteze de 10/100 Mbps si 2 porturi Combo Gigabit pentru uplink. Acesta dispune de functii avansate pentru extinderea distantei de transmisie, management securizat si optimizare a traficului in retea.
Moduri de functionare multiple
Dispozitivul suporta trei moduri de operare: Default pentru utilizare standard, VLAN pentru izolare si securitate sporita (porturile downlink comunica doar cu uplink-ul) si EXTEND, care permite transmisia pe distante de pana la 250 metri ideal pentru instalatii mari de supraveghere.
Performanta si control eficient
Cu o capacitate de switching de 7.2 Gbps si rate de transmitere de 5.36 Mpps, switch-ul gestioneaza eficient traficul chiar si in retele aglomerate. Controlul pe porturi si bufferul optimizat de 4Mbit contribuie la o retea stabila si fluida.
Constructie robusta si fiabila
Carcasa complet metalica ofera durabilitate in medii profesionale. Ventilatorul incorporat asigura o racire eficienta, iar alimentarea universala AC 100-240V il face potrivit pentru diverse aplicatii.
Specificatii tehnice principale
- Producator: UNV (Uniview)
- Numar porturi PoE: 16 porturi 10/100Mbps
- Putere PoE: 250W – 30W max/port
- Porturi Uplink: 2 porturi Combo 1000Mbps
- Capacitate switch: 7.2 Gbps
- Forwarding: 5.36Mpps
- Packet Buffer: 4Mbit
- MAC: 16K
- MTBF: 50.000 ore
- Mod functionare: STANDARD(100m) / VLAN / EXTENDED(250m)
- Standard PoE: IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az
- Ventilatoare: 1
- Tensiune alimentare: AC 100-240V, 50/60Hz;
- Temperatura operare: 0 ~ +40 C
- Dimensiuni: 440 x 190 x 44mm
- Greutate: 2070 g.
Avantaje
- Compatibilitate perfecta cu sistemele de supraveghere IP
- Transmisie extinsa pana la 250 m in modul EXTEND
- Mod VLAN pentru izolare si protectie a datelor
- Putere PoE totala generoasa: 250W
- Carcasa metalica durabila si ventilatie eficienta
- Instalare usoara si interfata prietenoasa
