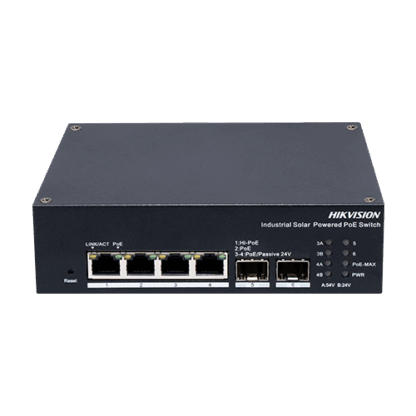

DS-3T1506HP-EI-UPS este un switch PoE multifunctional proiectat special pentru sisteme alimentate cu energie solara. Acesta ofera optiuni flexibile de economisire a energiei, monitorizare la distanta a starii bateriilor solare si variante multiple de intrare si iesire a tensiunii, pentru a se adapta usor la diverse scenarii de instalare.
Caracteristici principale
- Suport 802.3bt Hi-PoE, pana la 90 W pe port;
- Porturile 3-4 pot oferi PoE out pasiv pentru bridge-uri wireless;
- Compatibil cu alimentare solara 1224 V sau intrare DC 54 V;
- Functionare fiabila intr-un interval extins de temperatura: -40 C pana la +75 C;
- Monitorizarea starii bateriei prin aplicatiile Hik-Partner Pro si Hik-Connect;
- Programare inteligenta a consumului de energie;
- Protectie la supratensiune de 6 kV pentru stabilitate ridicata.
- Producator HIKVISION
- Numar porturi 4 x RJ45 Gigabit PoE, 2 x SFP Gigabit, 1 x RS485
- Capacitate switch 14 Gbps
- Packet Forwarding Rate 10.42 Mpps
- MAC address table 2K
- Cache 1 Mb
- Alimentare PoE (IN 12-24V DC) total 60W, port 1: max. 60W, port 2-4: max 30W/port
- Alimentare PoE (IN 54V DC) total 110W, port 1: max. 90W, port 2-4: max 30W/port
- Alimentare 12-24V DC (posibilitate prin panou solar), 54V DC
- Consum max. 120W
- Temperatura operare -40C ~ +75C, IP30
- Dimensiuni 158 mm x 44 mm x 130 mm
- Protectie supratensiune 6 kV
