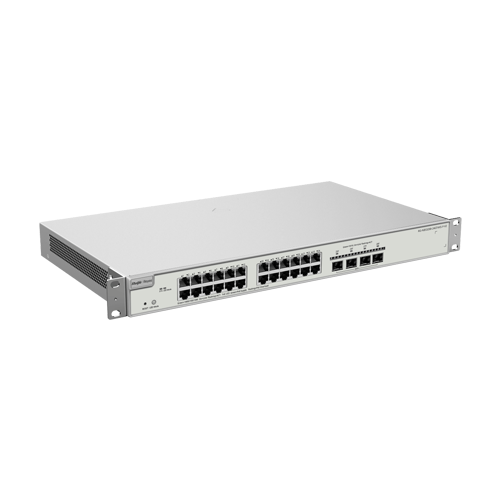

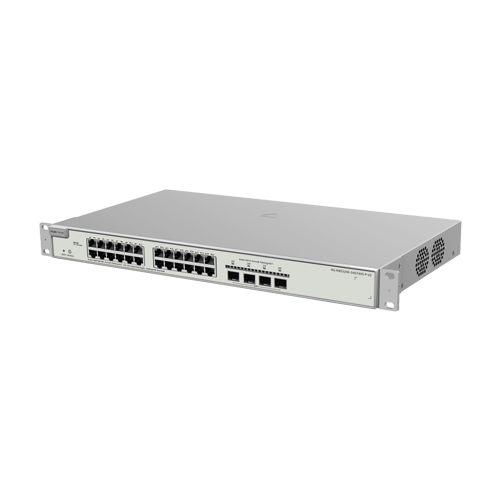

RG-NBS3200-24GT4XS-P-V2 este un switch Layer 2+ inteligent, creat sa ofere viteze ultra-rapide de 10Gbps si management simplificat in cloud pentru o infrastructura moderna si sigura.
Caracteristici cheie
- Porturi Gigabit PoE+ – Ofera 24 de porturi pentru date si alimentare cu un buget total de 370W;
- Uplink-uri 10G SFP+ – Cele 4 porturi optice asigura transferuri de date masive;
- Recunoastere Camere IP – Functie dedicata pentru CCTV care identifica automat dispozitivele de supraveghere;
- Management Cloud Gratuit – Gestionezi reteaua de oriunde si oricand prin aplicatia Ruijie Cloud;
- Protectie 6 kV – Design-ul robust asigura rezistenta ridicata la supratensiuni pentru porturi si sursa;
- VLAN-uri specializate – Include functii dedicate pentru Voice VLAN si Surveillance VLAN pentru o prioritate automata a traficului critic;
- Performanta Enterprise – Capacitate de switching de 128 Gbps si o rata de transfer de 96 Mpps.
Specificatii tehnice:
- Producator Ruijie Reyee
- Numar porturi PoE 24 x RJ45 1G
- Porturi Uplink 4 x SFP+ 10G
- Interfata management Fara
- Capacitate switch 128 Gbps
- Packet Forwarding Rate 96 Mpps
- MAC address table 16K
- CPU Nespecificat
- Memorie RAM 512 MB
- Memorie flash 256 MB
- Buffer Nespecificat
- MTBF 400.000 ore
- Standard PoE IEEE 802.3af/at
- Putere PoE total 370W, max. 30W/port
- Tensiune alimentare 100-240V AC
- Consum max. 430W
- Protectie supratensiune 6kV
- Temperatura operare 0C ~ +50C
- Dimensiuni 440 mm x 222.6 mm x 44 mm, 1U
- Greutate 2880 g
