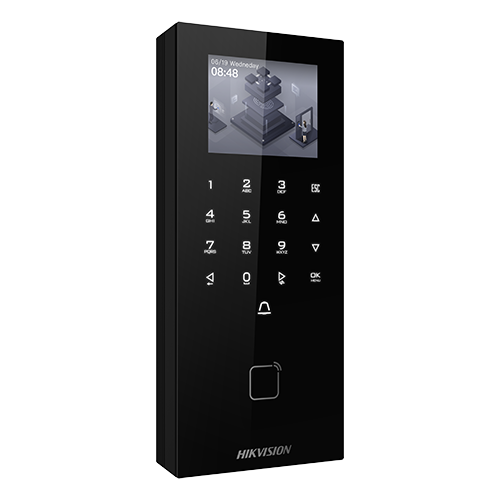

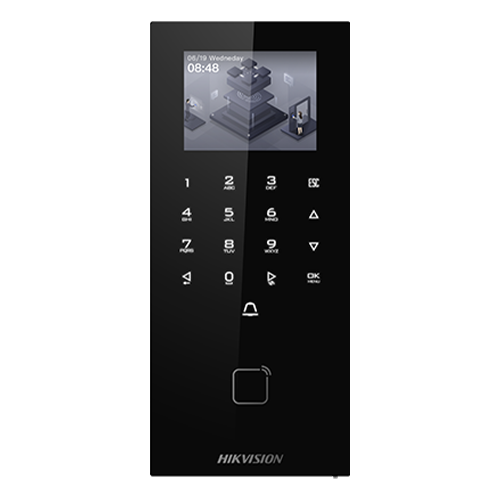

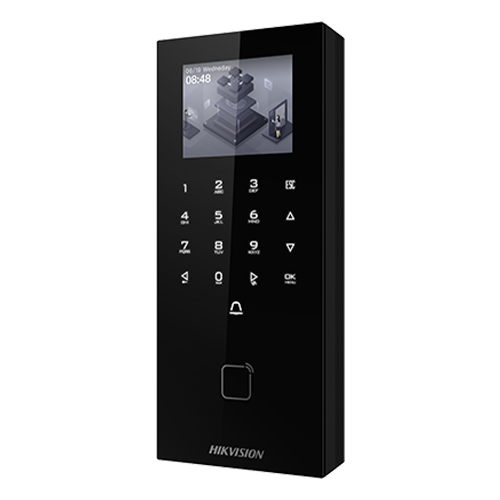

DS-K1T807MX-E1 este un terminal compact si fiabil pentru control acces, cu interfata intuitiva si multiple optiuni de autentificare, potrivit pentru medii rezidentiale si comerciale care necesita securitate si flexibilitate.
Caracteristici:
- Ecran LCD de 2, 4 inch
- Metode multiple de autentificare: card (card M1), PIN
- Capacitate: maxim 5.000 carduri si 150.000 evenimente
- Suport pentru protocoale ISAPI si ISUP 5.0
- Conectivitate: retea prin cablu
- Suport cablare cu unitate de control al usii securizate sau cititor de carduri prin RS-485
- Alimentare: 12 V CC sau PoE
- Suporta alimentarea dispozitivului si a incuietorii usii
Specificatii tehnice:
- Producator HIKVISION
- Sistem operare Linux
- Capacitate carduri 5000 carduri
- Mod autentificare acces Card M1(Mifare), cod PIN
- Capacitate stocare evenimente 150.000
- Distanta citire card 0 ~ 5 cm
- Afisaj Dimensiune ecran – 2, 4 inch, Tip LCD, Rezolutie 320 × 240
- Interfete retea 1 RJ-45, 10/100 M autoadaptabil, Bluetooth
- Interfete 1x RJ45, 1x RS-485 (Half duplex, HIKVISION), 1x Wiegand( (W26, W34), 1x control incuietoare, 1x buton iesire, 1x contact usa, 2x alarma IN, 1x alarma OUT, 1x TAMPER, 1x USB, Suport POE
- Audio Audio output
- Alimentare 12 VDC
- Consum max. 6 W
- Temperatura de functionare -30 C ~ +60C, IP65
- Protectie IP65
- Dimensiuni 172 mm × 76 mm × 27.5 mm
- Instalare Pe perete
- Greutate 0.377 kg
