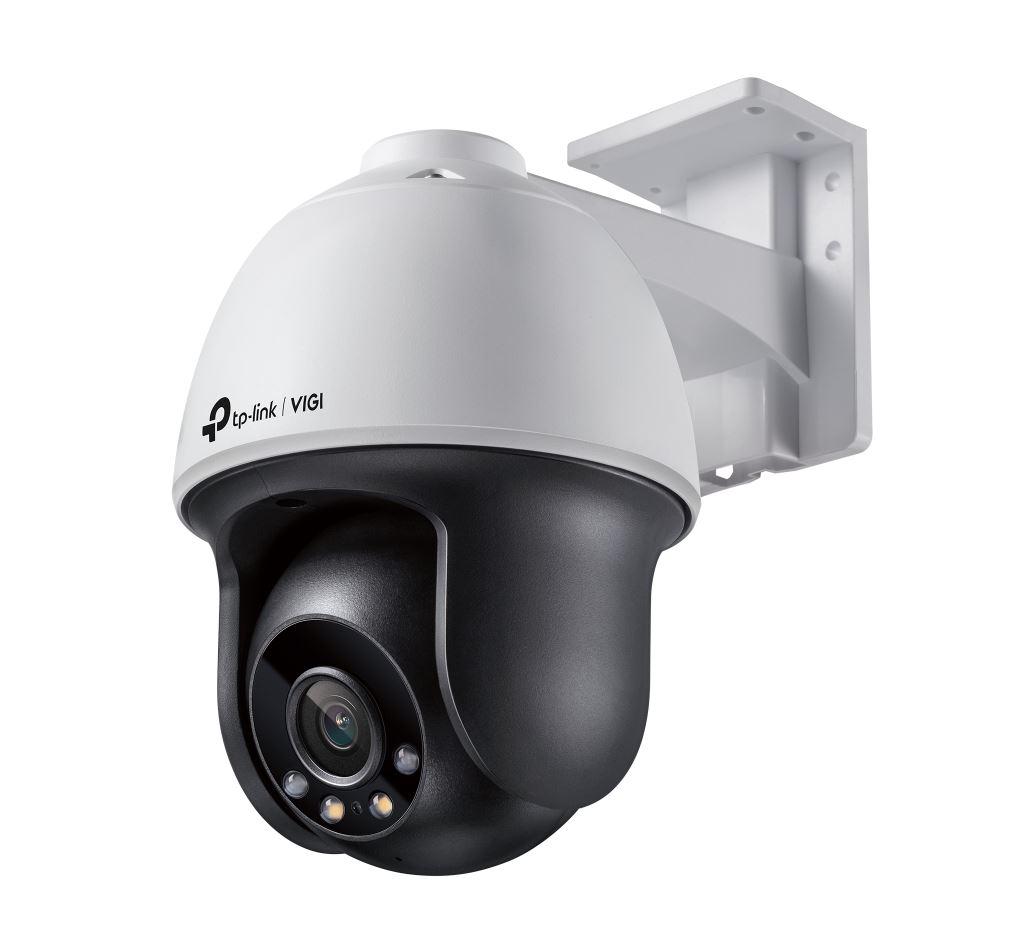

Camera IP Pan/Tilt TP-Link VIGI C540, 4MP Full-Color, IR 30m si lumina alba 30m, lentila fixa 4mm, PoE, IP66

TP-Link VIGI C540 este o camera IP Pan/Tilt de exterior, potrivita pentru monitorizarea curtilor, parcarilor, depozitelor, intrarilor, perimetrelor comerciale sau zonelor unde este nevoie de acoperire flexibila. Camera ofera rezolutie 4MP, imagine color 24/7, iluminare IR si lumina alba pana la 30 m, rotire Pan/Tilt, trasee de patrulare, preseturi, auto-tracking si detectie inteligenta pentru persoane si vehicule. Modelul include microfon si difuzor pentru audio bidirectional, aparare activa prin avertizare sonora si lumina alba intermitenta, slot microSD pana la 512 GB si alimentare prin PoE sau 12V DC.

Specificatii tehnice:

• Producator: TP-Link
• Gama: VIGI
• Model: VIGI C540
• Tip camera: camera IP Pan/Tilt de exterior
• Rezolutie maxima: 4MP, 2560 x 1440 px
• Senzor imagine: 1/3” Progressive Scan CMOS
• Iluminare minima: 0.005 Lux / 0 Lux cu IR sau lumina alba
• Mecanism zi/noapte: filtru IR-Cut
• Comutare zi/noapte: Unified / Scheduled / Auto
• Lentila: fixa
• Distanta focala: 4 mm
• Apertura: F1.6
• Unghi vizual: 79 orizontal, 43 vertical, 93 diagonal
• Montura lentila: M12
• Distanta DORI: detectie 80 m, observare 33 m, recunoastere 16 m, identificare 8 m
• Pan/Tilt: pan 0 – 350, tilt 0 – 120
• Viteza Pan: configurabila 8 – 44/s
• Viteza Tilt: configurabila 8 – 44/s
• Viteza control manual: configurabila 8 – 35/s
• Preseturi: 300
• Patrol Scan: 8 patrulari, pana la 8 preseturi pentru fiecare patrulare
• Power-off memory: da
• Park action: preset / patrol scan
• 3D positioning: da
• Ajustare manuala: pan 0 – 348, tilt 0 – 120
• Iluminare IR: 2 LED-uri IR
• Distanta IR: pana la 30 m
• Lungime unda IR: 850 nm
• Lumina alba: 2 LED-uri
• Distanta lumina alba: pana la 30 m
• Control iluminator: Auto / Scheduled / Always On / Always Off
• Vedere nocturna: Full-Color 24/7
• Compresie video main stream: H.265+, H.265, H.264+, H.264
• Compresie video sub-stream: H.265, H.264
• Rezolutii video: 2560 x 1440, 2304 x 1296, 2048 x 1280, 1920 x 1080, 1280 x 720
• Frame rate main stream: pana la 25 fps la 50Hz / pana la 30 fps la 60Hz
• Bitrate video main stream: 256 Kbps – 4 Mbps
• Bitrate video sub-stream: 64 Kbps – 512 Kbps
• Control bitrate: CBR / VBR
• Imbunatatire imagine: BLC, 3D DNR, HLC, SmartIR
• WDR: DWDR
• SNR: ≥ 52 dB
• Privacy mask: pana la 4 zone
• ROI: 1 regiune
• OSD: da
• Detectie smart: area intrusion, line-crossing, people detection, vehicle detection, region entering/exiting, object abandoned, object removal si abnormal sound detection
• Detectie de baza: motion detection cu clasificare persoane/vehicule, video tampering si illegal login
• Auto-tracking: da
• Alarmare: inregistrare pe card, notificari push, avertizare sonora si lumina alba intermitenta
• Audio: microfon si difuzor integrate
• Comunicare audio: bidirectionala
• Raza microfon: pana la 5 m
• Filtrare zgomot ambiental: da
• Compresie audio: da
• Rata esantionare audio: 8 kHz
• Interfata retea: 1 port RJ45 10/100 Mbps cu PoE
• Protocoale: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
• ONVIF: da, Profile S
• Vizualizare simultana: 3 main streams si 3 sub-streams
• Clienti compatibili: VIGI App, VIGI Security Manager si Web UI
• Cloud: da
• Stocare locala: slot microSD integrat, pana la 512 GB
• Card microSD inclus: nu
• Reset button: da
• Alimentare: 12V DC ±5% sau PoE
• PoE: da, 802.3at, Class 4
• Consum maxim 12V DC: 14 W
• Consum maxim PoE: 16 W
• Material: plastic
• Protectie: IP66
• Temperatura de operare: -30C ~ +60C
• Umiditate operare: maximum 95%, fara condens
• Dimensiuni: 120 x 172 x 198 mm
• Certificari: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
