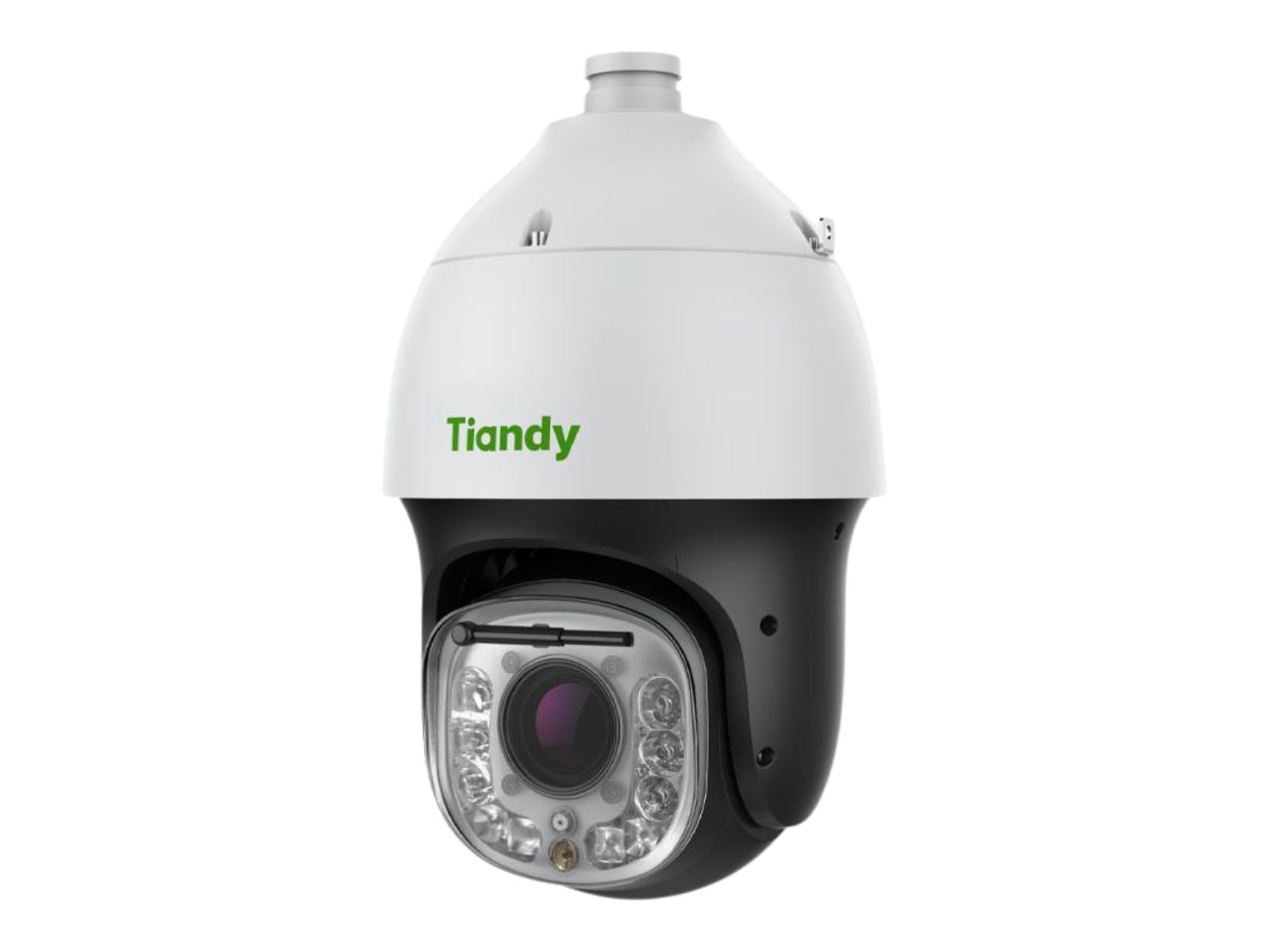

Camera IP PTZ exterior Tiandy 5MP Color Maker 44X IR 200m lumina alba 50m PoE IP66 microSD AEW TC-H356V-44XIWEA

Tiandy TC-H356V-44XIWEA este o camera IP PTZ de exterior din seria Pro, cu rezolutie 5MP, 3072 x 1728@30fps, zoom optic 44X, zoom digital 16X, IR pana la 200m si lumina alba pana la 50m. Camera are lentila 6-264mm, WDR 120dB, compresie S+265/H.265/H.264, analiza video cu clasificare om/vehicul, Face Capture, Auto-Tracking, Auto Early Warning, stocare microSD pana la 512GB, difuzor integrat, audio I/O, alarma I/O, stergator, alimentare AC24V / DC24V sau PoE IEEE 802.3bt si protectie IP66. Este potrivita pentru parcari mari, perimetre, fabrici, depozite, zone logistice, drumuri de acces si obiective unde ai nevoie de supraveghere mobila, zoom puternic si iluminare pe distante mari.

Imagine 5MP cu zoom optic 44X

Camera ofera rezolutie maxima 5MP, 3072 x 1728@30fps, pe senzor 1/1.8 inch CMOS. Zoomul optic 44X, impreuna cu zoomul digital 16X, permite apropierea imaginii pentru zone aflate la distanta, cum ar fi porti, parcari, cai de acces sau perimetre largi.

Lentila 6-264mm pentru distante mari

Lentila 6-264mm are diafragma F1.6-F5.3, iris automat P-Iris si control focus Auto / Semi-auto / Manual. Unghiul de vizualizare variaza intre 59.2 si 2.5 grade pe orizontala, in functie de nivelul de zoom.

PTZ rapid cu preseturi si trasee automate

Camera are rotire Pan 0-360 grade si Tilt intre -16 si 90 grade. Viteza manuala ajunge pana la 180 grade/s pe Pan si 120 grade/s pe Tilt, iar viteza pe preset ajunge la 240 grade/s pe Pan si 180 grade/s pe Tilt. Suporta 500 preseturi, 16 cruise-uri, 8 scan-uri, 8 pattern-uri, 3D Position, North Point, memorie la intreruperea alimentarii si Preset Freezing.

IR 200m si lumina alba 50m

Camera foloseste 10 LED-uri IR cu distanta de pana la 200m si 4 LED-uri albe cu distanta de pana la 50m. Smart IR ajuta la controlul iluminarii pe timp de noapte, iar lumina alba poate fi folosita pentru avertizare si imagine color in scenarii configurate.

Functii AI, Auto-Tracking si Face Capture

TC-H356V-44XIWEA include analiza video pentru clasificare om/vehicul, Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Missing, Heatmap, Loitering, Running, Parking, People Counting, Safety Helmet Detection, On Duty Detection, Video Abnormal, Audio Abnormal si Crowd Detection. Functia Face Capture poate detecta pana la 32 de fete in aceeasi scena si poate captura pana la 16 fete in aceeasi scena.

Auto Early Warning si difuzor integrat

Camera suporta Auto Early Warning, Auto-Tracking si metode de reactie la evenimente precum trimitere email, sunet, lumina alba, inregistrare, captura, notificare catre centrul de supraveghere si iesire de alarma. Are difuzor incorporat 4 ohm / 4W, audio I/O si alarma I/O pentru integrare in sisteme mai complexe.

Stocare microSD, PoE si IP66

Modelul are slot pentru card microSD, microSDHC sau microSDXC de pana la 512GB, interfata RJ45 10/100Base-T si alimentare AC24V ±25%, DC24V ±10% sau PoE IEEE 802.3bt. Carcasa metalica are protectie IP66, protectie la supratensiune 4000V si ESD 6000V.

Specificatii tehnice:

• Brand: Tiandy
• Model: TC-H356V
• Cod produs: TC-H356V-44XIWEA
• Specificatie producator: TC-H356V Spec: 44X/IW/E/A
• Tip produs: camera IP PTZ / speed dome
• Utilizare: exterior
• Seria: Pro Series
• Rezolutie maxima: 5MP, 3072 x 1728@30fps
• Senzor imagine: 1/1.8 inch CMOS
• Iluminare minima: Color 0.0001 Lux @ F1.6, AGC ON; B/W 0 Lux cu IR
• Shutter: 1s pana la 1/100000s
• Day/Night: filtru IR-cut cu comutare automata
• Smart IR: da
• WDR: 120dB
• Raport semnal/zgomot: 40.6dB
• Distanta focala: 6-264mm
• Zoom optic: 44X
• Zoom digital: 16X
• Viteza zoom: sub 5s
• Diafragma: F1.6-F5.3
• Tip diafragma: Auto, P-Iris
• Unghi vizualizare: 59.2-2.5 grade orizontal, 34.6-1.4 grade vertical, 66.7-2.9 grade diagonal
• Control focus: Auto / Semi-auto / Manual
• Distanta focus apropiat: 100-1000mm
• DORI: detectie 2414m, observare 958m, recunoastere 483m, identificare 241m
• Pan: 0-360 grade
• Viteza Pan manuala: 0.1-180 grade/s
• Viteza Pan preset: 240 grade/s
• Tilt: -16 pana la 90 grade
• Viteza Tilt manuala: 0.1-120 grade/s
• Viteza Tilt preset: 180 grade/s
• 3D Position: da
• Preseturi: 500
• Cruise: 16, pana la 32 preseturi per cruise
• Scan: 8
• Pattern: 8, fiecare cu 600s memorie sau 1000 comenzi
• Task programat: Preset, Cruise, Scan, Pattern
• North Point: da, setare manuala
• Power-off Memory: da
• Preset Freezing: da
• LED-uri IR: 10
• Distanta IR: pana la 200m
• Lungime unda IR: 850nm
• LED-uri albe: 4
• Distanta lumina alba: 50m
• Compresie video: S+265 / H.265 / H.264B / H.264M / H.264H / Motion JPEG
• Bitrate video: 32Kbps pana la 16Mbps
• Compresie audio: G.711A / G.711U / ADPCM_D / AAC_LC
• Sampling audio: 8kHz / 32kHz / 48kHz
• Stream principal PAL: 25fps la 3072 x 1728, 2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 960, 1280 x 720; 50fps la 1920 x 1080, 1280 x 960, 1280 x 720
• Stream principal NTSC: 30fps la 3072 x 1728, 2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 960, 1280 x 720; 60fps la 1920 x 1080, 1280 x 960, 1280 x 720
• Sub-stream PAL: 25fps la 704 x 576, 704 x 288, 640 x 360, 352 x 288
• Sub-stream NTSC: 30fps la 704 x 480, 704 x 240, 640 x 360, 352 x 240
• Al treilea stream PAL: 25fps la 1920 x 1080, 1280 x 720, 704 x 576, 640 x 360, 704 x 288, 352 x 288
• Al treilea stream NTSC: 30fps la 1920 x 1080, 1280 x 720, 704 x 480, 640 x 360, 704 x 240, 352 x 240
• Functii imagine: BLC, HLC, AGC, 3DNR
• White Balance: Auto, Semi-Auto, Manual, Sunshine, Nature Light, Warmlight Lamp, Daylight Lamp, Filament Lamp, Lock White Balance
• ROI: 7 zone 3D fixe dreptunghiulare si 1 ROI dinamic de urmarire
• EIS: da
• OSD: 5 regiuni
• Defog: da
• Flip: Normal, Horizontal Mirror, Vertical Mirror, Inverted Flip
• Regional Exposure: da
• Regional Focus: da
• Demist: da
• Privacy Mask: 24 regiuni, pana la 4 blocuri in aceeasi scena
• Alarme generale: Motion Detection, Mask Alarm, Alarm Input
• Exceptii alarma: Disk Full, Disk R/W Error, Recording Exception, IP Address Conflict, MAC Address Conflict, FTP Server Exception, Network cable disconnected
• Linkage eveniment: email, sunet, lumina alba, inregistrare, captura, notificare centru supraveghere, iesire alarma
• Analiza video: Human/Vehicle Classification, Tripwire, Double Tripwire, Perimeter, Object Abandon, Object Missing, Heatmap, Loitering, Running, Parking, People Counting, Safety Helmet Detection, On Duty Detection, Video Abnormal, Audio Abnormal, Crowd Detection
• Auto Early Warning: da
• Auto-Tracking: da
• Face Mode: Face Capture
• Performanta Face Capture: detectie pana la 32 fete in aceeasi scena, captura pana la 16 fete in aceeasi scena
• ANR: da
• Protocoale: RTSP, RTMP, HTTP, HTTPS, TCP, UDP, UPnP, ICMP, IGMP, SNMP v1/v2/v3, DHCP, DNS, DDNS, Easy DDNS, NTP, SMTP, TLS v1.2, SSL, 802.1x, QoS, IPv4, IPv6, PPPoE, SSH, Unicast, Multicast, ARP, RTP, SRTP, FTP, SFTP
• Compatibilitate sistem: P2P, ONVIF Profile S/T/G/M, SDK, CGI, Milestone, RTSP, RTMP, HTTP PUSH
• Conexiuni remote: maximum 7
• Utilizatori: 32
• Client PC: Easy7 VMS
• Client mobil: EasyLive Plus
• Web: IE10+, Firefox 52+, Edge 89+, Safari 11+, Chrome 57+
• Interfata retea: 1 x RJ45 10/100Base-T
• Audio I/O: 1 intrare audio, 1 iesire audio
• Alarm I/O: 8 intrari TTL 3mA 3.3V DC, 2 iesiri releu 1A / 24V DC
• Difuzor incorporat: 1 difuzor, 4 ohm / 4W
• Buton reset: da
• Stocare locala: microSD / microSDHC / microSDXC pana la 512GB
• Interfete suplimentare: RS-485
• Stergator: da
• Alimentare: AC24V ±25% / DC24V ±10% / PoE IEEE 802.3bt
• Consum: 13.4W, maximum 45W
• Protectie: Surge 4000V, ESD 6000V, IP66
• Material carcasa: metal
• Temperatura de functionare: -40 grade C pana la +70 grade C
• Umiditate functionare: maximum 95% RH
• Temperatura de stocare: -40 grade C pana la +70 grade C
• Umiditate stocare: 10% pana la 95% RH, fara condens
• Dimensiuni: 222mm diametru x 372mm inaltime
• Dimensiuni pachet: 320 x 320 x 520mm
• Greutate neta: 5.3kg
• Greutate bruta: 8.95kg
