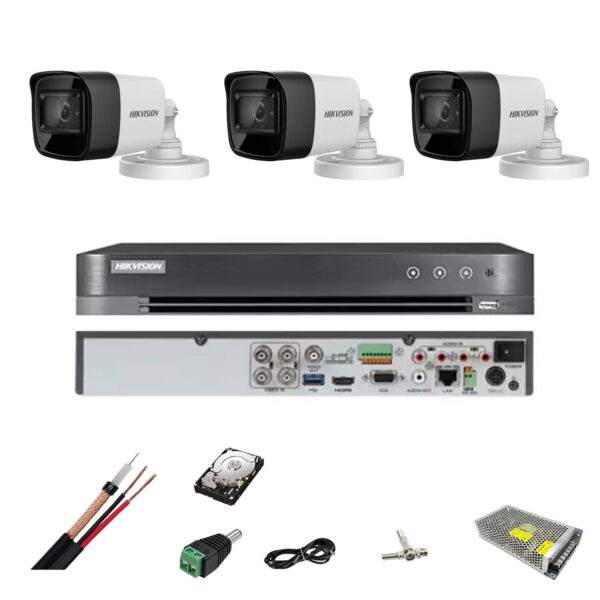

Sistemul contine:
- 3x Camera supraveghere 8MP 2.8mm, IR 30m – Hikvision
- 1x DVR 4K 4 canale
- 1x Hard Disk 500GB
- 1x Sursa alimentare 12V 10A
- 1x Cablu alimentare retea
- 1x Cablu coaxial 20m
- 3x Mufa TATA cu surub
- 6x Conector BNC
Camera supraveghere 8MP 2.8mm, IR 30m
Principalele avantaje ale acestei camere sunt:
- Posibilitatea de a comuta intre tehnologiile TVI/AHD/CVI/CVBS
- Posibilitate de a selecta rezolutie: 8MP / 5MP / 4MP / 1080P
- Senzor de 8.29 MP Progressive Scan, rezolutie video 3840 × 2160 pixeli (8 Megapixeli)
- Lentila fixa de 2.8 mm, asigura unghi vizual de 102.2°
- Distanta IR pe timp de noapte pana la 30 metri
- Temperatura de functionare de la – 40°C pana la + 60°C, clasa protectie IP67
Model / producator: HIKVISION
Senzor: 8.29 MP high performance CMOS
Rezolutie: 8 MP (3840 — 2160)@15fps 5 MP (2560 — 1944)@20fps 4 MP@25fps 1080p@25fps
Lentila: 2.8mm unghi vizualizare 102.2°
Iluminare minima: 0.01 Lux @ (F1.2 AGC ON) 0 Lux IR pornit
Distanta IR: EXIR pana la 30 metri IR Cut Filter Smart IR
Temperatura operare: -40°C~60°C
Alimentare: 12 VDC±15% consum max. 5.3W
Carcasa: metalica culoare alba – tip ‘Bullet’ IP67
Dimensiuni: 86.7—81.6—226mm
Greutate: 345 gr.
Format iesire: TVI/AHD/CVI/CVBS
Accesorii compatibile: DS-1280ZJ-XS
DVR 4K 4 canale
- Inregistreaza 4 canale video TurboHD 8MP (3840x 2160 pixeli 15fps) , 5MP 20 fps, 3 MP 18 fps TVI, 2.1 MP TVI 25fps; AHD 5 MP, 3 MP; HDCVI 4MP, 2MP, 1 MP
- Inregistreaza 4 camere IP Hikvision de pana la 8 MP, compresie H.265+/H.265/H.264+/H.264
- Gestioneaza 1 HDD SATA de pana la 10TB (neinclus)
- Playback simultan 4 camere video; inregistreaza pe 4 canale TVI audio over coaxial (de la camere TurboHD audio over coaxial)
- 1 RJ45 10M/100M/1000M, 4 X AUDIO IN; Alarm In/Out 4/1, RS-485 (half-duplex); 1X USB 2.0 front, 1X USB 3.0 rear
- 3x Video Out: HDMI 4K 3840 × 2160 pixeli; 1x Full HD 1080p VGA out 1920 × 1080 pixeli; CVBS output
- Smart search for efficient playback; Video Content Analytics , line crossing detection and intrusion detection pentru toate canalele si detectie “sudden change” pentru 2 canale
- Cablare cu cablu coaxial de pana la 800metri (RG6) pentru camere Hikvision TurboHD, se folosesc conectori BNC
- Utilizeaza simultan camere analogice clasice, HIKVISION TurboHD pana la 8 MegaPixel, AHD 5MegaPixel, HDCVI 4 MegaPixel
Hard Disk 500GB
- HARD DISK 500 GB
- Capacitate: 500 GB
- Model: Variaza in functie de lot: Toshiba, WD, Seagate, etc.
- Viteza de rotatie: 7200 rpm
- Buffer: 32 MB
- Interfata: SATA 3
- Rata de transfer: SATA 600 MB/s
- Dimensiuni(W x D x H):101.6 x 147 x 26.1 mm
- Greutate: 450 g
Sursa alimentare 12V 10A
- Material carcasa : metal (tabla perforata) / Culoare : argintiu
- Led indicator tensiune iesire
- Tensiune AC de intrare : 100V-240 V / 50/60 Hz;
- Max Input Voltage Range 90-270V AC
- Tensiune DC de iesire : 12 V (2 x iesiri)
- DC; Max. Ripple & Noise 250mV
- Semireglabil ajustare tensiune iesire : 10.5-14.5 V DC
- Curent maxim DC de iesire : 10A
- Protectie la scurtcircuit, suprasarcina, supratensiune
- Over Load 105-115% of Rated Output Power
- Short Circuit Protection Type: Auto Recovery
- Dimensiune : 198*98*42mm
- Greutate : 550 g (cutia ambalaj + sursa)
