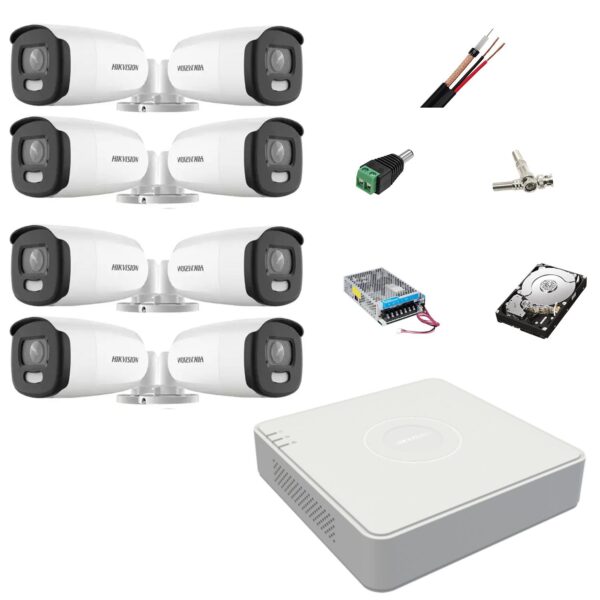

Sistemul contine:
- 8x Camera AnalogHD 5MP ColorVU, lentila 2.8mm, lumina alba 40m – DS-2CE12HFT-F28
- 1x DVR 8 canale Hikvision TurboHD, Audio – iDS-7108HUHI-M1-S
- 1x Cablu RG59 coaxial cu alimentare 2×0.5 mm rola 100 m
- 8x Mufa TATA cu surub
- 16x Conectori BNC
- 1x Sursa de alimentare 12V 10A
- 1x Hard disk 1TB
Camera AnalogHD 5MP ColorVU, lentila 2.8mm, lumina alba 40m
Camera de supraveghere de la Hikvision are o rezolutie de 5MP si lumina alba care ofera vizibilitate pe timp de noapte de pana la 40m. Este dotata cu lentila fixa de 2.8 mm care permite un unghi de vizualizare de 99.7°. Tehnologia ColorVU ofera imagini color 24/7, astfel incat si pe timp de noapte imaginile sa fie la o calitate si claritate ridicata. Camera va bucura cu imagini clare chiar și in lumina puternica datorită tehnologiei WDR si elimina zgomotul de imagine cu ajutorul functiei 3D DNR.
Specificatii | |
Image Sensor | 5 MP CMOS |
Signal System | PAL/NTSC |
Resolution | 2560 (H) × 1944 (V) |
Frame Rate | TVI: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080p@30fps, 1080p@25fps CVI: 4MP@30fps, 4MP@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps CVBS: PAL/NTSC |
Min. illumination | 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with White Light |
Shutter Time | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
Slow Shutter | Max. 16 times |
Lens | 2.8 mm fixed lens |
Horizontal Field of View | 2.8 mm, horizontal FOV: 99.7°, vertical FOV: 72°, diagonal FOV: 139.8° |
Lens Mount | M16 |
Day & Night | Color |
WDR (Wide Dynamic Range) | ≥130 dB |
Angle Adjustment | Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360° |
Menu | |
White Light | Auto/Off |
Image Mode | STD/HIGH-SAT |
AGC | Yes |
Day/Night Mode | Color |
White Balance | Auto/Manual |
AE (Auto Exposure) Mode | WDR/BLC/HLC/Global/HLS/Anti-banding |
Privacy Mask | 4 programmable privacy masks |
Motion Detection | 4 programmable motion areas |
Noise Reduction | 3D DNR |
Language | English |
Function | Brightness, Sharpness, Mirror, Smart Light |
Interface | |
Video Output | Switchable TVI/AHD/CVI/CVBS |
General | |
Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing) |
Power Supply | 12 VDC ± 25% *You are recommended to use one power adapter to supply the power for one camera. |
Power Consumption | Max. 4.9 W |
Protection Level | IP67 |
Material | Metal |
White Light Range | Up to 40 m |
Fisa tehnica
DVR 8 canale Hikvision TurboHD
iDS-7108HUHI-M1-S este un DVR din seria AcuSense, suporta 8 canale analogice cu rezolutie de pana la 8MP + 4 canale pentru camere IP cu o rezolutie de pana la 8MP. Audio prin cablu coaxial.
Datorita tehnologiei de Deep learning AcuSense sunt eliminate alarmele false, clasificare tinte umane si vehicule (4 canale), protectie perimetru, scurtarea timpului de cautare a evenimentelor prin sistemul de smart playback. Deep learning bazat pe detectie miscare 2.0 la toate canalele analogice.
Management prin Hik-Connect si DDNS (Dynamic Domain Name System).
Compatibil cu majoritatea adaptoarelor Wi-Fi din piata.
Model / producator | HIKVISION |
Inregistrare | 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/3 MP@18 fps 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) |
Camere suportate | HDTVI, AHD, HDCVI 8 MP@15 fps, 8 MP@12.5 fps, 3K@20 fps, 5 MP@20 fps, 5 MP@12 fps, 4 MP@30 fps, 4 MP@25 fps, 3 MP@18 fps, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps Analog + pana la 16 ch. IP max 8MP; |
Compresie | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
Redare | 1-8 canale sincronizate |
Intrari | 8 x BNC; 1 x audio, 8 x audio over coaxial, LAN 10/100/1000 Mbps, 2 x USB |
Iesiri | HDMI, VGA – (simultan); 1 audio |
Stocare | 1 x HDD SATA max 10TB (neinclus) |
Alimentare | 12V DC |
Consum | maxim 10W (fara HDD) |
Dimensiuni | 200 × 200 × 45 mm |
Analiza video (VCA) | Detectie om/masina (4 canale), protectie perimetru |
Greutate | maxim 1 Kg |
